Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof

Place of Origin China
Brand Name KLUK
Certification ISO14001, ISO45001,ISO9001
Model Number Sliding doors
Minimum Order Quantity 100pcs
Delivery Time 25-30days
Payment Terms L/C, T/T, D/P, MoneyGram, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Open Style Sliding,Folding,Left And Right Pull,Swing,etc Door Material Aluminum Alloy,Glass,Stainless Steel
Surface Finishing Finished Type Sliding Doors,Entry Doors,OEM Aluminum Extrusions Profiles,Aluminum Alloy Door & Window
Position Commercial,Industrial Color Any Color,Can Be Customized,Glazed,Various Options,requirement
Sliding Door Type Partition Doors,Closet Doors,Folding Doors Surface Treatment Powder Coating,Powder Coated|Natural Anodised,customized(polishing,Electrophresis Or Customized.
Size Customized Size,can Be Customized,according To Your Project,As Per Customer Specification,Standard Size/depend On Your Requirements Hardware Chinese Top Brand
Material Aluminun Alloy,Alloy 6063/6061/6005/6060 T5/T6,aluminum Alloy And Tempered Glass,Aluminum Frame,aluminum+glass Product Name Office Door,Modern,Aluminum Interior Sliding Door
Application Commercial Building/Residential Glass Optional Double Toughened Impact Glazing,frosted Glass
Profile Thickness 2.0mm,1.4 Mm-2.0mm,1.1-2.5mm,2.0mm~2.5mm,1.4mm And 2.0mm Thickness Packing Standard Packing,Export Standard Package
Name Sliding Stacker Door,aluminum Sliding Door System Aluminium Doors And Windows Designs,aluminum Sliding Door With Aluminum Sliding Door For Bathroom,aluminum Full View Garage Doors Glass Color Clean,Grey/Green/Blue/Tea/or The Others,clear/frosted/ Black/brown/blue
Glazing 5mm+6/9/12a+5mm,Double Tempered Clear Glazing,Fully Tempered 5/12A/5 Insulation Glass; Low-E Coating
High Light

6063 aluminium double sliding doors


Toughened Glazed Commercial Aluminum Sliding Doors


Soundproof Commercial Aluminum Sliding Doors

Leave a Message
Product Description
Soundproof Aluminium Sliding Doors
Product Description
Soundproof aluminium sliding doors factory acoustic window design for house
comply with others
Glass Standard:
Comply with AS2208
Structural glazing:
Comply with AS1288
matt black;white;clear anodized;nature clean aluminium
Surface finishment:
Powder coating,Anodized,Electrophoresis,Fluorine cabon coaring,Wood grain
Flynet options:
Stainless steel mesh,aluminium grill,Fiber glass,retractable flyscreen
Door sill:
Low door sill, no door sill, high door sill
PC thickness:
60-120 miu
Place of Origin:
Place of Origin:Shanghai, China (Mainland)

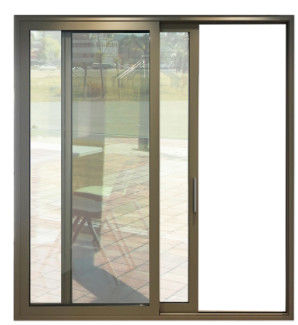

Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 0
Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 1
Detailed Images

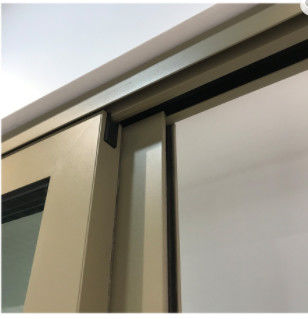

Chinese top brand hardware
with 5 years warranty
Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 2
Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 3

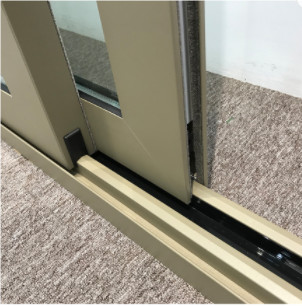

Smooth track
easy closing and opening
Section details:
Euro Thermal break
high performance system
Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 4
Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 5
Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 6

Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 7Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 8Commercial Aluminum Sliding Doors Double Toughened Impact Glazed Soundproof 9




1. The principle of electrophoresis technology


The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.

The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.

For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.


2. Excellent performance of products


high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.


3. The principle and application of paint extinction


With electrophoresis coating technology development, in the coating industry in China, also become the world’s top coating production, forming a related industry group, and actively promote the technological revolution and development of traditional painting domain. During this period, the bright and bright gloss paints are popular with consumers with their bright colors and bright colors, and in a long time, the coating market. However, as people’s living standard has been improved, on the one hand, consumers have felt that the high gloss coating is more serious than the reflection, which is harmful to people’s eyes. On the other hand, the aesthetic concept of consumers is more and more casual, fashionable and personalized. Coupled with the booming demand of China’s electronics and appliance industries. These factors led to a sharp increase in demand for low-gloss coatings with a soft appearance. At the same time, it is necessary to consider how to produce paint with matte performance.


3.1.1 Determination of gloss and luster


The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sublight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.




Please tell us the information below, and we will give the best suggestion to you !


1. Where you intend to use the aluminium windows?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
