Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame

  • Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame
  • Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame
  • Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame
  • Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame
Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2016;ISO14001:2016
Model Number KTL180
Minimum Order Quantity 300 Square Meters
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C, D/P
Supply Ability 30000 Square Meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy 6063 Thickness 1.5-2.0mm Aluminum Sliding Doors
Hardware Fixed Hinge With Handle,smooth Pulley And Track Model KTL180
Type Sliding Doors Position Interior,balcony
High Light

Fluorocarbon Internal Aluminum Sliding Doors

,

Fluorocarbon sliding door with aluminum frame

,

Non Thermally Broken Aluminum Sliding Doors
Leave a Message
Product Description

Non-Thermal Break Aluminum Sliding Doors Wood Grain Surface Three Track Customize





Sliding Door Introduction:



Aluminium sliding doors are a great option for opening up your home to the outdoors without losing valuable space on the inside or out.
Our aluminium sliding doors are available in a wide range of styles and configurations, including:

Standard Sliding Door Range, with 2 panels for smaller openings.
Entertainer or Stacker Sliding Door Range, with 3 or more panels.
Bi-Parting Sliding Door Range, with 4 or more panels, opening from the centre.
Corner Sliding Door Range, with multiple panels opening from a corner, with no corner post for the ultimate alfresco area.
Designed for a sleek, modern finish, our sliding doors are a great solution for both visual impact and practicality



Wood Grain Surface Technology:



Wood transfer formula often choose high and low hydroxyl value of two kinds of polyester. If the difference between the two hydroxyl values is too small and the gelation time is not too different, the separation of the film and the transfer paper is not easy. Through a large number of experiments, we set the hydroxyl value of 75 mgKOH / g of the hydroxyl polyester resin as the reference point, > 75 mgKOH / G as the high hydroxyl value, and < 75 mgKOH / g as the low hydroxyl value. We use the polyester resin with these two hydroxyl values to obtain the film which is easy to separate from the transfer paper.Aluminum Folding Doors



Water mark transfer printing is to transfer the pattern to the plate through the material, which is a bit similar to our old printing, and the process effect is not as good as water drape transfer printing.Aluminum Folding Doors


Water drape transfer printing can not only process wood grain, but also stone grain and leather grain. At the same time, because of the technology, there will be no empty position of water mark transfer printing, and the whole transfer printing will not let the plate and printing film contact, which ensures the transfer printing effect to a greater extent.

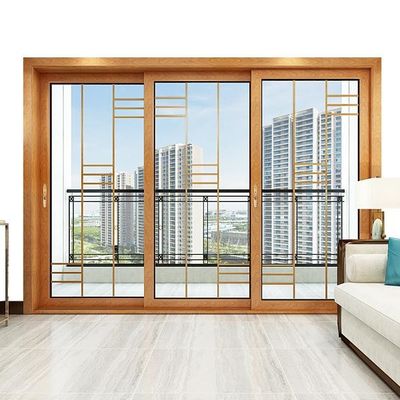

Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 0

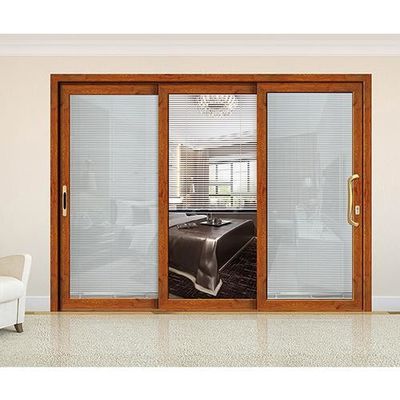

Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 1

Performance Parameter

National Standard

Wind Load Resistance 4.5<=p3>=5.0 level 9
Air Tightness 2.5<=q1<=2.0 level 7
Water Tightness 350<=△p>=700 level 5
Thermal Insulation 3.0>k>=2.5 level 5(broke bridge)
Sound Insulation 35=<Rw+Ctr<40 level 5

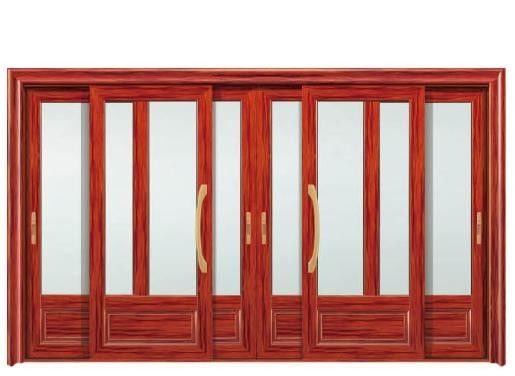

Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 2



Name/Model: Non-Thermal Break Aluminum Sliding Doors Wood Grain Surface Three Track Customize
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need,Aluminum Folding Doors
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO

Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years,
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)

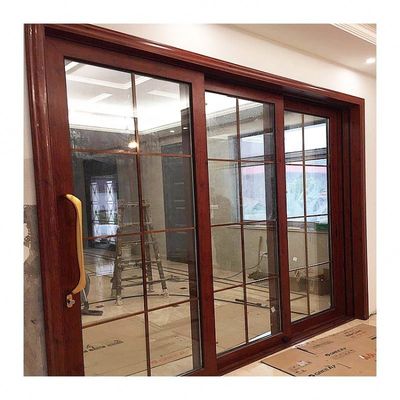

Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 3

Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 4



Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 5

Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 6



Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 7

Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 8
Thermal Break Aluminum Sliding Doors , Three Track Sliding Doors With Aluminum Frame 9
