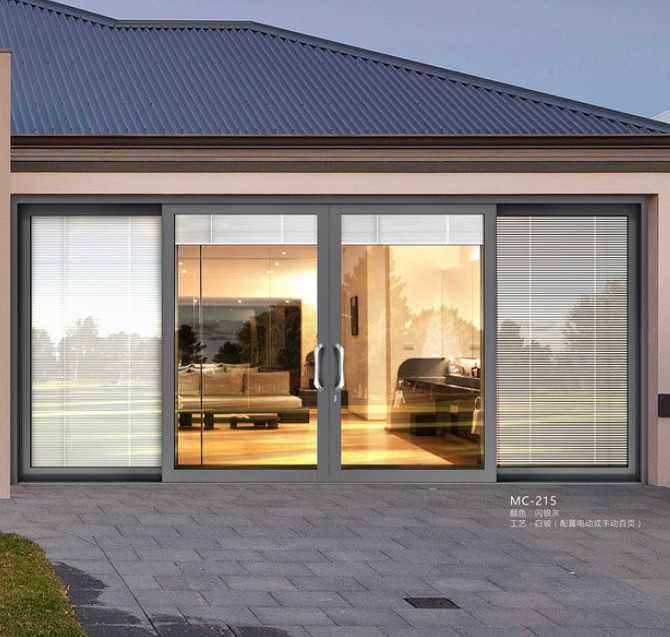

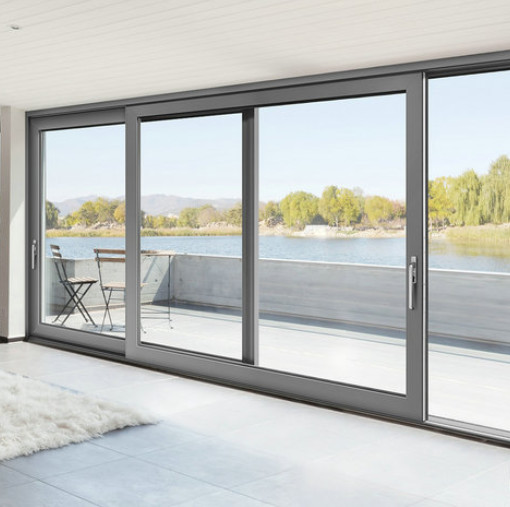

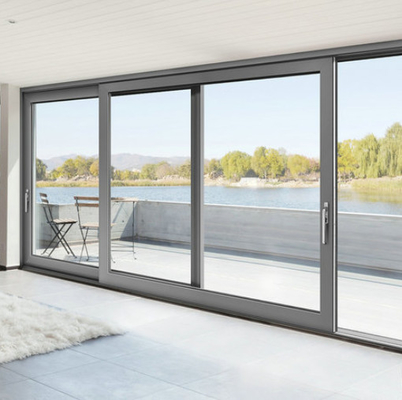

Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door

  • Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door
  • Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door
  • Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door
Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2021;ISO14001:2021
Model Number 135 series
Minimum Order Quantity 300 square meter
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 25-30 days
Payment Terms T/T, L/C
Supply Ability 30000 square meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy 6063 Glass 5mm+20A+5mm Hollow Glass
Thickness 1.0-2.0mm Aluminium Sliding Frame Door Color Black;deep Grey,etc
Hardware Pulley,handle,lock,screw,load,u-shaped Hard Film,joint Seal,etc Opening Pattern Two/three-track Sliding
High Light

Three Track Aluminum Sliding Doors

,

Heavy Aluminum Sliding Doors

,

10mm Aluminium Sliding Frame Door
Leave a Message
Product Description



135 Series Heavy Three Track Aluminum Sliding Door 5+20A+5 Hollow Glass Door







Product Specification:





The frame width of this series of profile is 135mm, which is called 135 series bridge broken sliding door; Professional translation

The wall thickness of the main stressed parts of the profile is 2.0mm, and the reinforced part is 2.2mm;

Ordinary push-pull, electric lifting push-pull, manual lifting push-pull, electric remote control push-pull, manual power assisted push-pull, 90* corner column free opening:

Adopt carbon fiber reinforced tree lap matrix composites:

Tenor wind 14.8mm, C-type waterproof and thermal insulation strip, pa66+ge material; Jiangyin Haida European standard sealant strip and EPDM material are used;

Standard 5+20a+5 hollow glass; Optional 5+16a+5.5+27a+5, 5+12a+5+12a+5, which can be used as electric shutter, manual shutter and other styles;

304 stainless steel track:

It can realize electric lifting push-pull, manual lifting push-pull, electric Siam control push-pull, manual power assisted push-pull, 90 ° angle push-pull and common push-pull:

The outline of this series is assembled by striking angle, and the frame is connected by patented movable corner code; ntt

Match with 100mm flat door pocket line; 70mm European style, 80mm plane and 80mm arc surface are selected; Crimping

It is designed for a closed inner cavity, with bath foam strips; set up

The height of the upper and lower rails coincides, and the lower rail adopts a low threshold barrier free design;

Standard simec accessories; Translational handle, lockable translational handle, New York lifting handle, U-shaped concealed handle; It can be equipped with imported hardware accessories imported from Belgium.





Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door 0


Name/Model: 135 Series Heavy Three Track Aluminum Sliding Door 5+20A+5 Hollow Glass Door
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO

Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)






Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door 1



Details Images
1.All the products produced by Chenxing Building Materials Co.,Ltd. need to get through three strict inspections before packing : Raw material cutting test, Production process inspection, The finished debugging.
2.Providing customized service to apply each customer requirements, we will try our best to







Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door 2
achieve 100% customer satisfaction.
Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door 3

Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door 4
Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door 5
Heavy Three Track Aluminum Sliding Doors 10mm Hollow Glass Door 6
