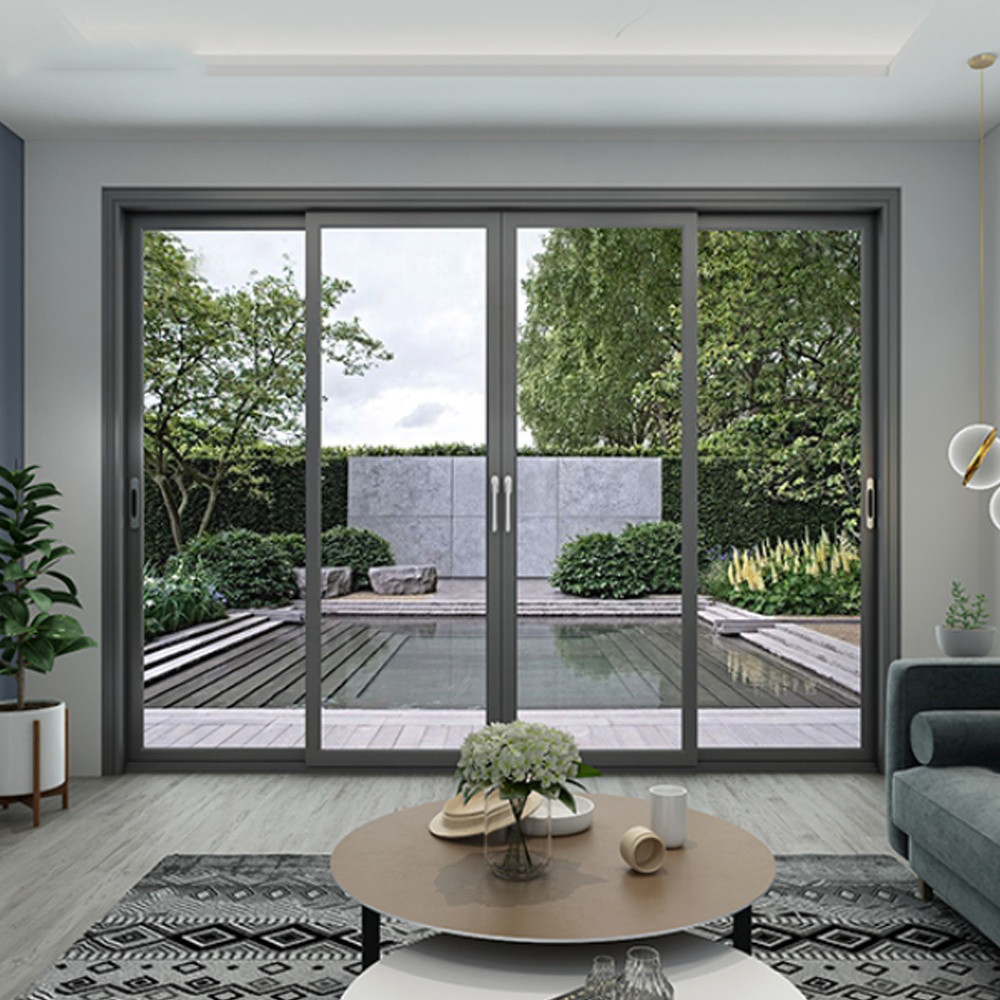

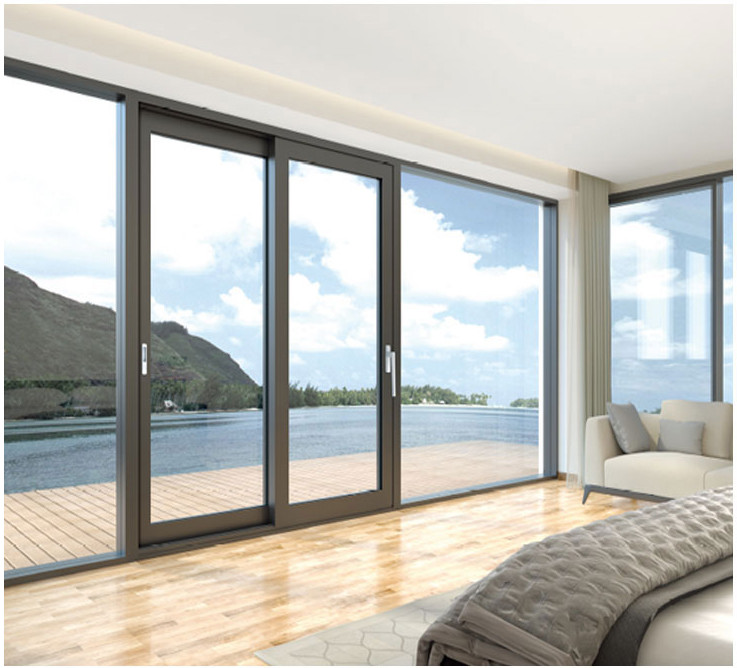

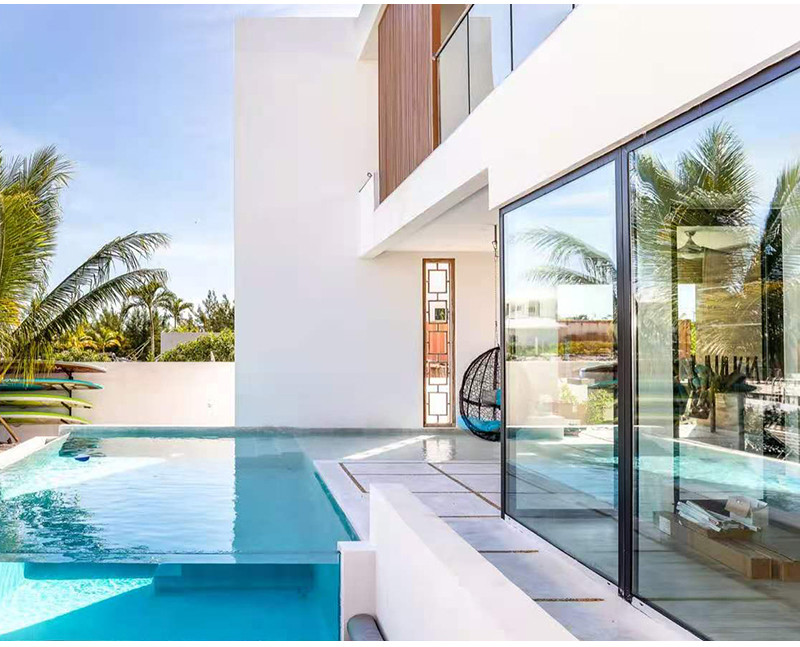

Fireproof Triple Track Sliding Door Exterior Aluminium Glass Patio Doors

Triple Track Sliding Door Fireproof Exterior Aluminium Glass Patio Doors

KHD78 Series Triple Track Sliding Door Fireproof Exterior Aluminium Glass Patio Doors

Single/Double Glass Aluminum Patio Door:

Single layer glass has good light transmission performance, low cost, beautiful and applicable. However, compared with the other two kinds of glass sliding doors, the thermal insulation effect and thermal insulation effect of single-layer glass sliding doors are relatively poor. If the balcony is a frameless sliding door, it needs 10mm tempered glass. If it is a framed sliding door, the tempered glass needs to be 5mm thick. 2, Hollow glass sliding door of balcony glass sliding door.
Balcony hollow glass sliding door has good heat insulation and sound insulation effect. Hollow glass is made of two or more layers of flat glass. Generally, high strength and high air tightness composite adhesive is adopted around the glass to bond and seal two or more pieces of glass with sealing strips and glass strips. The spacing between two layers of qualified insulating glass is generally 8mm. The test shows that if the spacing of 8mm is completely vacuum, the external atmospheric pressure will crush the glass. Therefore, the interlayer of insulating glass cannot be in a vacuum state, and must be filled with inert gases argon and krypton. Argon and krypton are dry gases, which can keep the air between glass sheets dry.

Glass Description

Double layer insulating glass
Insulating glass is to separate two pieces of glass by effective sealing material and spacer material, and a desiccant absorbing water vapor is installed between the two pieces of glass, so as to ensure that the inner part of insulating glass is a dry air layer for a long time, without water vapor and dust; At the same time, insulating glass is easy to carry out mass industrial production, so insulating glass is widely recommended in new buildings.
Two pieces of flat glass are isolated by molecular sieve, filled with dry air in the middle and sealed by organic adhesive around.
It has good heat insulation and sound insulation performance, and can be used as windows for buildings, refrigerated cabinets, railway vehicles, etc.

Basic knowledge of insulating glass
Insulating glass aluminothermic process
Double layer insulating glass
Double layer insulating glass
Aluminum is called active metal element, but in the air, a dense oxide film will form on its surface, which makes it unable to interact with oxygen and water. At high temperature, it can react with oxygen and release a lot of heat. With this high reaction heat, aluminum can replace metal from other oxides (aluminothermic method).
Insulating glass desiccant
Insulating glass desiccant is mainly used for absorbing moisture and gas in insulating glass interlayer gas to avoid glass fogging, keep insulating glass smooth and transparent even at very low temperature, improve insulating and sound insulation performance of insulating glass, and fully extend service life of insulating glass.
Insulating glass - sealant
(1) Anti gas leakage ability( 2) Resistance to water vapor penetration( 3) Anti ultraviolet ability( 4) Anti seepage ability( 5) Bonding system is structural.
