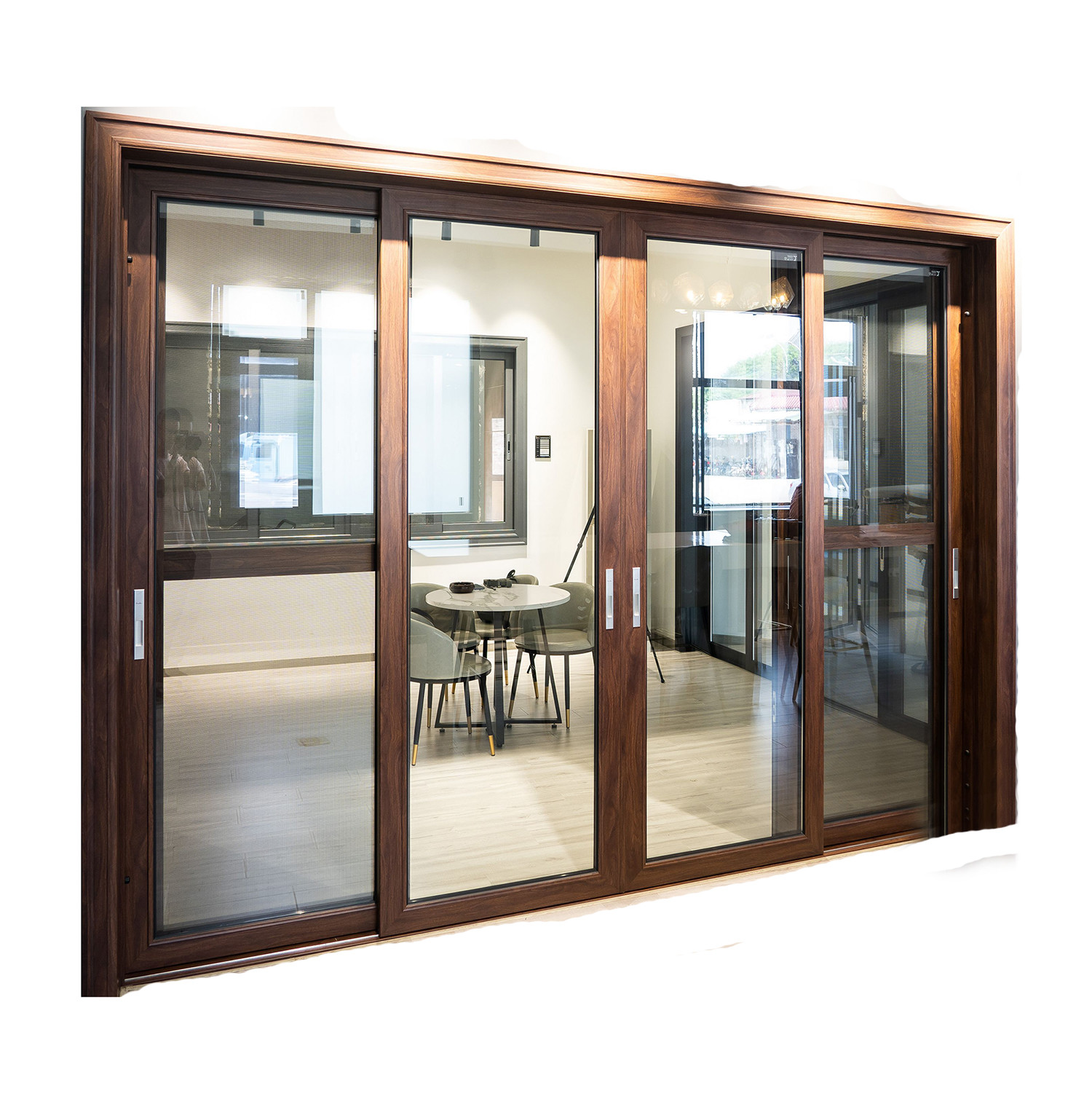

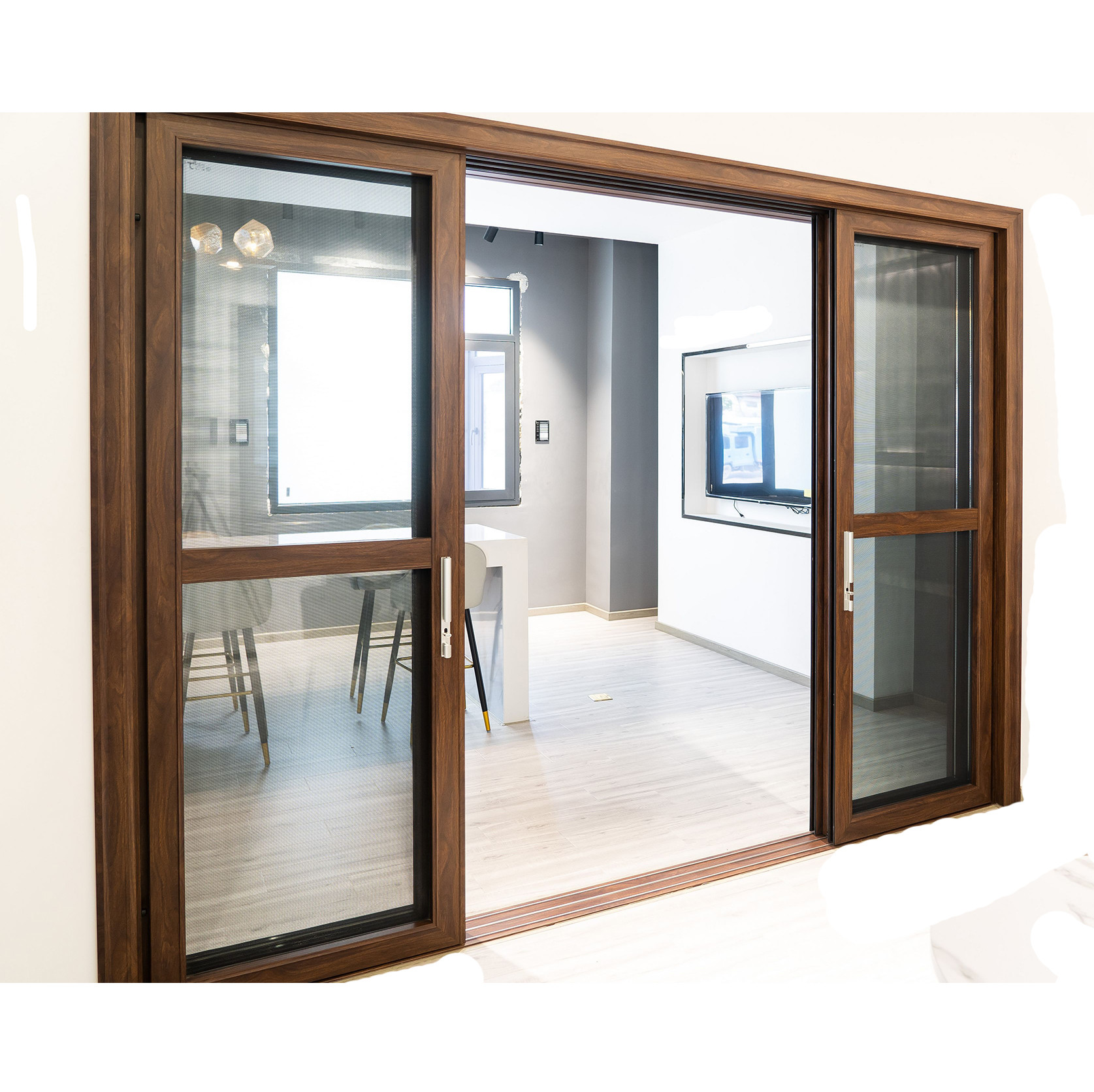

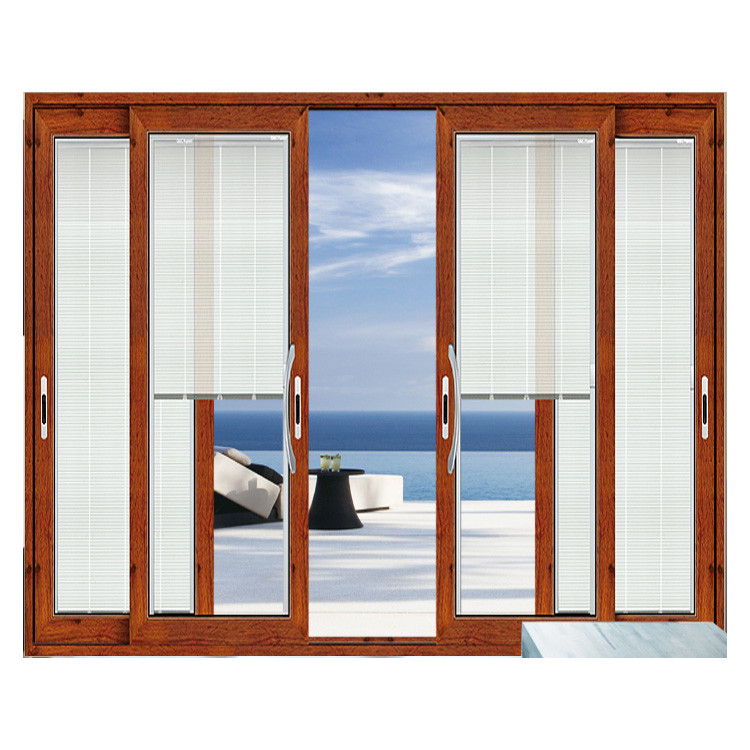

Hall 6063 Aluminum Sliding Doors With Mesh Wood Grain Frame

Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2016;ISO14001:2016
Model Number KHJ85
Minimum Order Quantity 200 square meter
Price Negotiation
Packaging Details Pearl cotton,foam cotton,plywood paper,film,wooden box,etc
Delivery Time 25-30 days
Payment Terms T/T, L/C
Supply Ability 30000 square meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy 6063 Glass 5mm+12A+5mm Double Clear Glazing
Thickness 0.8-1.0mm Aluminum Sliding Door With Mesh Mesh Stainless Steel
Hardware Handle,lock,hinge,screw,load,u-shaped Hard Film,joint Seal,etc Opening Pattern Two Track Push-Pull/Sliding
High Light

6063 Aluminum Sliding Doors

,

1.0mm Thickness Aluminum Sliding Doors

,

T6 Wood Grain Aluminum Sliding Doors

Leave a Message
Product Description



KHJ85 Series Wood Grain Frame Aluminum Sliding Door With Mesh For Hall







Advantages of Sliding Doors:





Functional differentiation: the balcony and living room are independent individuals with different functions. With sliding doors, their functionality is distinguished.
Noise barrier: for a family, some people like to bask in t sunshine on the balcony, while others like to watch TV, drink tea and push and pull the door in the living room, which can well block outdoor noise.
Ventilation / mosquito prevention: some people like to raise flowers and plants on the balcony, which can produce fresh air and attract mosquitoes. Push the glass fan open and close the door, the indoor and outdoor air can form a good convection, and there is no need to worry about mosquitoes entering the room.
Moisture prevention: when returning to the south in the south, the moisture on the floor, walls and ceiling will not be so serious as possible. In fact, the deeper significance is to protect the indoor home from moisture and increase the service life; The balcony is facing the outside, with heavy moisture. The aluminum alloy sliding door is more durable than the wooden door.
Aesthetics: some personalized patterns can be made on the sliding door glass to highlight the owner's unique taste and enhance the home style.
No space: there are also large family balconies, which like to install large folding or opposite doors. However, there is not much spare space for small houses, and sliding doors are the most space-saving.
UV protection: there are many house types that are relatively sunny. When the curtains are closed during the day, the room is too dark. Turning on the lights consumes electricity. The sliding door can play a role in reducing the intensity of UV, and the daylighting is good.
Heat insulation and energy saving: whether it is open in summer or heating in winter, we all know that the smaller the space, the lower the energy consumption, and the sliding door can also play a certain role in heat insulation.





Glass Description





Double layer insulating glass
Insulating glass is to separate two pieces of glass by effective sealing material and spacer material, and a desiccant absorbing water vapor is installed between the two pieces of glass, so as to ensure that the inner part of insulating glass is a dry air layer for a long time, without water vapor and dust; At the same time, insulating glass is easy to carry out mass industrial production, so insulating glass is widely recommended in new buildings.
Two pieces of flat glass are isolated by molecular sieve, filled with dry air in the middle and sealed by organic adhesive around.
It has good heat insulation and sound insulation performance, and can be used as windows for buildings, refrigerated cabinets, railway vehicles, etc.



Basic knowledge of insulating glass
Insulating glass aluminothermic process
Double layer insulating glass
Double layer insulating glass
Aluminum is called active metal element, but in the air, a dense oxide film will form on its surface, which makes it unable to interact with oxygen and water. At high temperature, it can react with oxygen and release a lot of heat. With this high reaction heat, aluminum can replace metal from other oxides (aluminothermic method).
Insulating glass desiccant
Insulating glass desiccant is mainly used for absorbing moisture and gas in insulating glass interlayer gas to avoid glass fogging, keep insulating glass smooth and transparent even at very low temperature, improve insulating and sound insulation performance of insulating glass, and fully extend service life of insulating glass.





Hall 6063 Aluminum Sliding Doors With Mesh Wood Grain Frame 0

Hall 6063 Aluminum Sliding Doors With Mesh Wood Grain Frame 1



Performance Parameter National Standard
Wind Load Resistance 3.0<=p3>=3.5 level 6
Air Tightness 2.5<=q1<=2.0 level 5
Water Tightness 350<=△p>=700 level 4
Thermal Insulation 3.0>k>=2.5 level 5
Sound Insulation 20=<Rw+Ctr<25 level 3





Hall 6063 Aluminum Sliding Doors With Mesh Wood Grain Frame 2


Name/Model: Wood Grain Frame Aluminum Sliding Door With Mesh For Hall
Profiles: T-6063 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO


Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)






Hall 6063 Aluminum Sliding Doors With Mesh Wood Grain Frame 3

Hall 6063 Aluminum Sliding Doors With Mesh Wood Grain Frame 4


Hall 6063 Aluminum Sliding Doors With Mesh Wood Grain Frame 5




Hall 6063 Aluminum Sliding Doors With Mesh Wood Grain Frame 6
