ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing

Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2016;ISO14001:2016
Model Number KPD70
Minimum Order Quantity 500 Square Meters
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C, D/P
Supply Ability 30000 Square Meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy 6063 Glass Tinted; Clear Tempered Glazed
Thickness 1.5-2.0mm Aluminum Casement Swing Doors With Grids Color Black,grey
Hardware Handle,lock,swing Hinge,screw,load,latch,etc Opening Pattern Lock And Swing
High Light

ODM Black Aluminium Frame Glass Door

,

Fixed Grids swinging french patio doors

,

ODM swinging french patio doors

Leave a Message
Product Description

KPD70 Series Customized Black Frame Aluminium Casement Swing Doors With Grids One Side fixed or Swing





KLUK Swing Doors:



KLUK Doors' Aluminum Thermally Controlled swing door is offered as a complete system with the following:

Perfect for hot & cold climates to keep the ideal temperature in
Clean and narrow 2 15/16" stile & rail profile doors
Thicker 2 1/4" panels suitable for high wind environment
Panel design offers split finish options for the exterior and interior for versatility of colors and aesthetic
Thermal struts that creates a non-conductive bridge between the outside and the inside of the door
Wider and taller than typical swing doors
Concealed multi-point locking system for ease of operation and security
Inswing and Outswing configurations
Flush threshold options
Commercial options including panic hardware
Clear & bronze anodized, and white in-stock finishes or create a distinctive color
Hardware finishes available in stainless or bronze
Wide range of glazing options for improved thermal performance
Unique narrow door profiles to match our folding and multi slide doors



Door leaf positioning and installation method:


First, adjust the positioning pin on the door frame crossbeam with its own adjusting screw to draw out the crossbeam plane 1-2mm. Then, firm the glass door leaf, align the hole position of the rotary pin connector in the lower cross bar of the door leaf with the rotary pin shaft of the ground spring, and rotate the door leaf to sleeve the hole position into the pin shaft. Then take the pin shaft as the axis, turn the door leaf 90 degrees (pay attention to straighten the door leaf when turning), so that the door leaf and the cross beam of the door frame are at right angles. At this time, the hole of the rotary connector in the crossbeam of the door leaf can be aligned with the locating pin on the crossbeam of the door frame, and the locating pin can be pulled out and inserted into the hole of the rotary connector of the crossbeam of the door leaf for about 15mm.Aluminum Spring Doors.

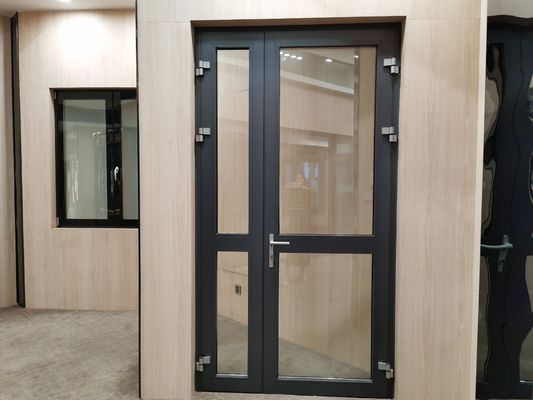

ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing 0

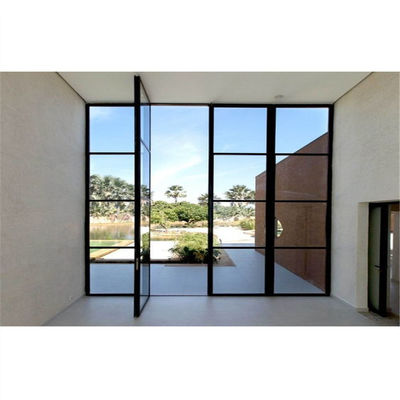

ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing 1

Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 9
Air Tightness 2.5<=q1<=2.0 level 8
Water Tightness 350<=△p>=700 level 3
Thermal Insulation 3.0>k>=2.5 level 2
Sound Insulation 35=<Rw+Ctr<40 level 3

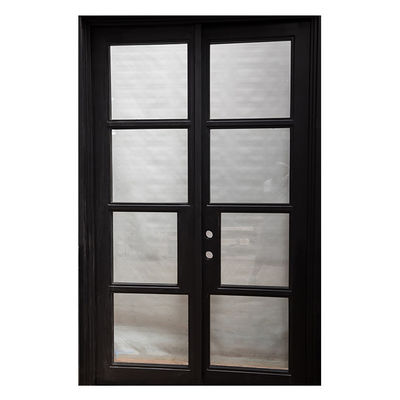

ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing 2


Name/Model: Customized Black Frame Aluminum Casement Swing Doors With Grids One Side Fixed Or Swing
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO


Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)

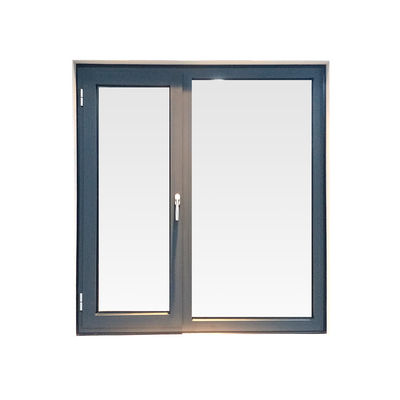

ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing 3

ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing 4



ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing 5

ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing 6

 Products Sketches:



ODM Patio Black Aluminium Frame Glass Door With Grids One Side Fixed Or Swing 7
