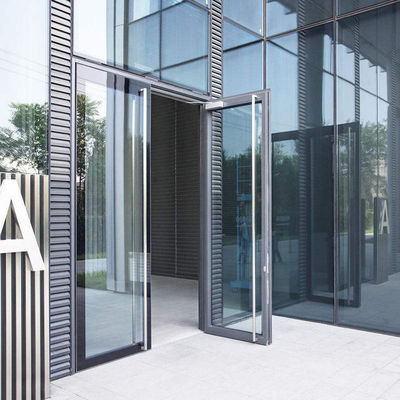

Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby

  • Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby
  • Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby
  • Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby
  • Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby
Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2016;ISO14001:2016
Model Number KNH101
Minimum Order Quantity 500 Square Meters
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C, D/P
Supply Ability 30000 Square Meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy 6063 Glass Hollow; Reflect; Frosted; Tinted; Clear Tempered Glazing
Thickness 1.5-2.0mm Aluminum Spring Doors Color Bronze;grey
Hardware Handle,lock,swing Hinge,screw,load,latch,etc Opening Pattern Vertical Casement Swing
High Light

Anodized Surface Entrance Double Swing Door

,

ISO14001 aluminium slide and swing doors

,

Anodized aluminium slide and swing doors
Leave a Message
Product Description

KNH101 Series Spring Door KFC Entrance Swing Door 2.0mm thickness anodized surface



Floor spring door is a kind of embedded door shaft spring or built-in vertical floor spring. The door leaf can be opened inside and outside freely, and the door leaf is in the closed position when it is not touched. Floor spring door is a kind of common door in decoration engineering, which can be opened freely inside and outside.Aluminum Spring Doors



Installation Method:


Use the glass sucker to hold the thick glass tightly, and then hold the sucker to lift the thick glass plate. 2-3 people should lift at the same time. After lifting, the thick glass plate should be inserted into the limit slot at the top of the door frame, and then placed on the bottom bracket, and the installation position should be aligned, so that the edge of the thick glass plate can just seal the stainless steel facing seam of the side frame column.Aluminum Spring Doors
The method of fixing the thick glass on the bottom bracket is as follows: nail a wooden strip on the side of the bottom bracket, which is about 4mm away from the thick glass plate. Then, brush universal glue on the wood strip, and stick the stainless steel plate on the wood. The installation structure of the upper and lower parts of the thick glass plate is shown in figure 5-197. Glass glue is injected into the top limiting groove, the bottom bracket fixing position and the butt joint between the thick glass and the frame column.Aluminum Spring Doors



Door leaf positioning and installation method:


First, adjust the positioning pin on the door frame crossbeam with its own adjusting screw to draw out the crossbeam plane 1-2mm. Then, firm the glass door leaf, align the hole position of the rotary pin connector in the lower cross bar of the door leaf with the rotary pin shaft of the ground spring, and rotate the door leaf to sleeve the hole position into the pin shaft. Then take the pin shaft as the axis, turn the door leaf 90 degrees (pay attention to straighten the door leaf when turning), so that the door leaf and the cross beam of the door frame are at right angles. At this time, the hole of the rotary connector in the crossbeam of the door leaf can be aligned with the locating pin on the crossbeam of the door frame, and the locating pin can be pulled out and inserted into the hole of the rotary connector of the crossbeam of the door leaf for about 15mm.Aluminum Spring Doors



Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby 0

Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby 1





Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 9
Air Tightness q1<=0.5 level 8
Water Tightness 250<=△p>=350 level 3
Thermal Insulation / standard
Sound Insulation 35=<Rw+Ctr<40 level 5





Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby 2


Name/Model: KNH101 Spring Door KFC Entrance Swing Door 2.0mm Thickness Anodized Surface
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO

Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)






Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby 3



Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby 4



Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby 5

Reflective Double Glass Aluminium Swing Door Aluminium Spring Doors for Hotel Lobby 6
