Waterproof Double Glazed Aluminium Sliding Doors Powder Coated

Place of Origin China
Brand Name KLUK
Certification ISO14001, ISO45001,ISO9001
Model Number LS01
Minimum Order Quantity 100pcs
Packaging Details Customized
Delivery Time 25days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Door Material Aluminum Alloy,Glass Type Sliding Doors,Aluminium Lift And Sliding Doors,aluminum Profile Door
Open Style Sliding,Swing,Casement,Fixed Window,Tilt Turn Window Surface Finishing Finished
Position Commercial,Industrial,House,Hotel Sliding Door Type Partition Doors,Folding Doors,Closet Doors
Hardware Chinese Top Brand,International Brand/ China Top Brand Color Requirement,matt Black;white;ultra Silver;clear Anodized;nature Clean Aluminium,White,brown,Power Coatig RAL Color
Surface Treatment Powder Coated,Painting Or Coating,Wood Grain / Electrophoretic Coating / Powder Coating / Fluorocarbon,Powder Coating Or Electrophoresis,Anodizing/powder Coating/wooden Grain Finished Glass Double Tempered Glass,Double/Triple/Laminated/Toughened,double Glazed In According With AS1288
Material Aluminum Alloy+Glass,Aluminum Alloy+Glass+Accessory,Aluminun Alloy,Aluminun Alloy+Tempered Glass,Thermal Break Aluminum Size Customized Size,as You Need,Standard Size/depend On Your Requirements,customization,2400*2350
Product Name Flexible Sliding Door,Hotel Partition Aluminum Lift And Sliding Door Design,lift And Slide Door,Sliding Patio Doors,aluminium Lift & Sliding Door Application Residential,Commercial Building And Residential House,Commerical
Profile Thickness 2.0 Mm,2.0mm Thickness,1.2-1.6mm,>1.4 Glass Type Tempered,Single Glass/Double Glass/Lamianted Glass
Name Aluminum Lift And Sliding Door Glass Choice 5+12A+5mm Low E/ Bullet Proof Glazing/tempered/reflective/frosted,5+12A+5 Mm Low-e; Reflective;Frosted
Frame 6063-T5 Grade Of Thermally Broken Aluminum Alloy,Aluminium
High Light

powder coated aluminium sliding doors

,

Double Glazed Aluminium Sliding Doors

,

Waterproof Double Glazed Aluminium Sliding Doors

Leave a Message
Product Description

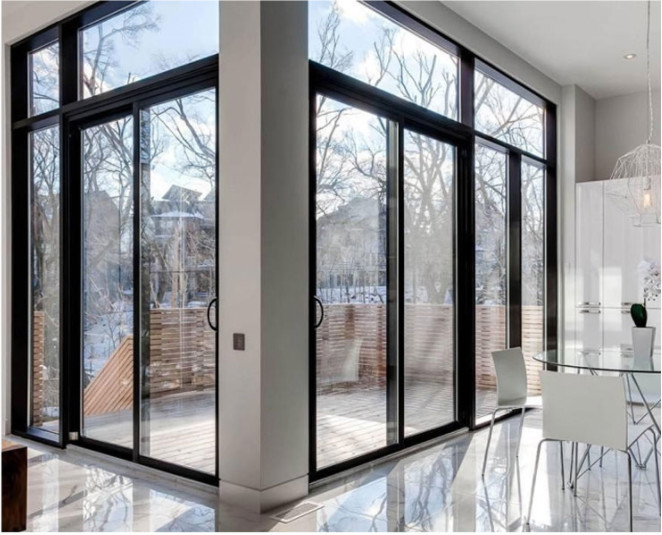

China Top Aluminium Frame Water Proof Double Glazed Lift Sliding Glass Doors



Specification:

Product name KLUK aluminium folding tempered glass sliding glass door system
Dimensions Customized, According to the client's specific requirement.
Material Profile Information Material: Aluminum alloy profile
Profile Wall thickness: 1.2-2.0mm
Color: as per the RAL
colour atla
Glass Option

Hollow glass, laminated glass, tempered glass, Low-E glass, floated glass, reflective glass
single glazing /double glazing
Single : 4/5/6/8/10/12mm
Double: 4+9A/12A/20A +4 5+9A/12A/20A+5 6+9A/12A/20A+6 8+9A/12A/20A+8, 6.38mm, 8.76mm 10.76mm 11.52mm etc

Color:clear, ford blue reflective, green reflective, LOW-E. etc.
Any other glass thickness according to customer's requirements.

Hardwares Handle, lock, sealing strip, friction hinge,etc.
High quality made in China/ Germany(ROTO)
Mosquito netting 304# Stainless steel, Metal and nylon material
Finishing Powder coated, Fluorocarbon, and Anodizing
Packing Bubble bag+Wooden frame
Applicable place Schools, Restaurants, Commercial Buildings and Residential etc.
Delivery time

30-45days after receiving the deposit





Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 0



--- PRODUCT SHOW---

aluminium folding tempered glass sliding glass door system price

Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 2Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 3

Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 4Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 5Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 6Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 7Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 8Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 9Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 10Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 11Waterproof Double Glazed Aluminium Sliding Doors Powder Coated 12

Surface:



1. The principle of electrophoresis technology



The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.

The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.

For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.



2. Excellent performance of products



high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.



3. The principle and application of paint extinction



With electrophoresis coating technology development, in the coating industry in China, also become the world’s top coating production, forming a related industry group, and actively promote the technological revolution and development of traditional painting domain. During this period, the bright and bright gloss paints are popular with consumers with their bright colors and bright colors, and in a long time, the coating market. However, as people’s living standard has been improved, on the one hand, consumers have felt that the high gloss coating is more serious than the reflection, which is harmful to people’s eyes. On the other hand, the aesthetic concept of consumers is more and more casual, fashionable and personalized. Coupled with the booming demand of China’s electronics and appliance industries. These factors led to a sharp increase in demand for low-gloss coatings with a soft appearance. At the same time, it is necessary to consider how to produce paint with matte performance.



3.1.1 Determination of gloss and luster



The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sublight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.







Please tell us the information below, and we will give the best suggestion to you !



1. Where you intend to use the aluminium windows?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
