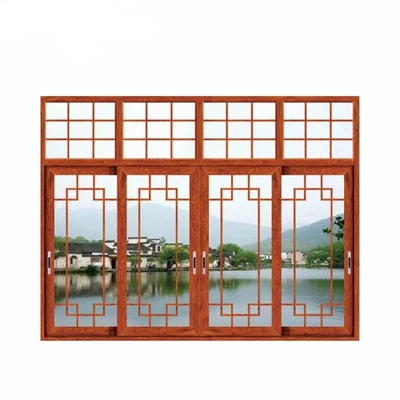

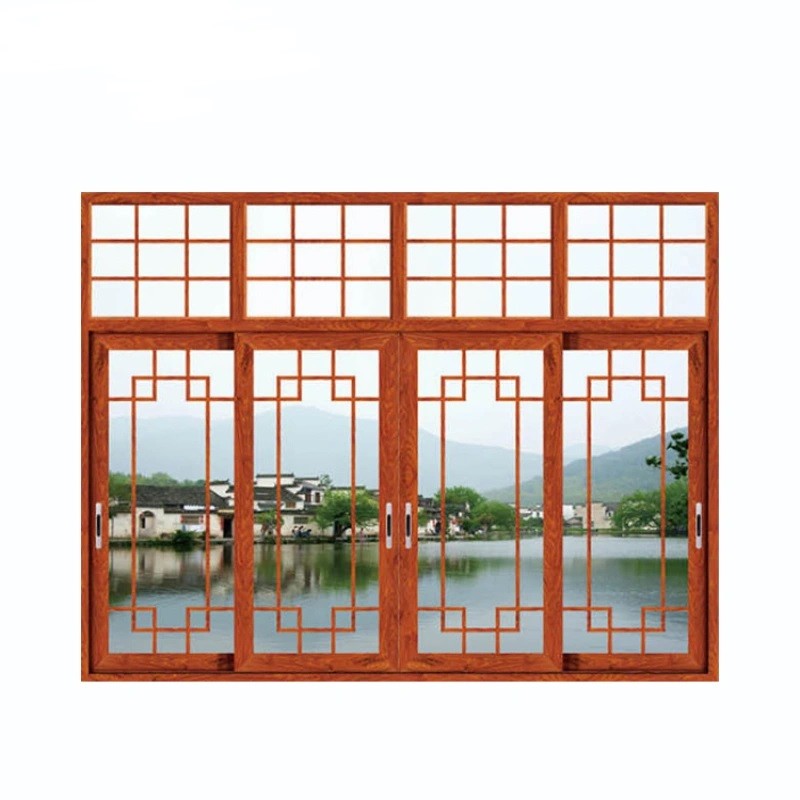

Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain

Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2022;ISO14001:2022
Minimum Order Quantity 300 Square Meters
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C, D/P
Supply Ability 3000 Square Meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy 6063 Glass 6mm Double Glazeing
Thickness 1.5mm Aluminium Sliding Windows Color Wood
Hardware Fixed Hinge With Handle,bearing Roller,etc Opening Pattern Sliding And Fixed
High Light

Veranda Aluminium Sliding Windows

,

Burglar Proof Aluminium Sliding Windows

,

Wood Grain Aluminium Sliding Windows

Leave a Message
Product Description
Two/Three Track Wood Grain Aluminum Security Burglar Proof Veranda Sliding Window

KTA65 Series Promotional Aluminium Round Top Sliding Windows Multi Color Single/Double Glass





Introduction of Sliding Windows:


Sliding windows and doors are a very good option in case you need to cover spans which have a width larger than 1.70 m. Moreover, sliding windows are the ideal option when you have limited space around your window. Also, for large spans you can use a technologically superior lift & slide system that is much easier to slide and provides an excellent tightness against air and water, thanks to the special lift mechanism that raises the sash, allowing its rollers to glide smoothly on the rail of the frame. Modern sliding windows and doors have come a long way and provide reliable solutions, with excellent functionality.
ALUMIL offers a wide variety of sliding or lift & slide windows and doors: Round Sliding Windows
Horizontal sliding windows – In which multiple sliding windows stand next to each other on separate sliding tracks.
Meeting stile windows – In which two sliding windows stand on the same sliding track and are locked at their connection point in the middle.
Pocket windows – Usually, one or two sliding windows which when opened are hidden into to the wall.
Round Sliding Windows
Corner windows – Constructions in which two sliding windows make a right angle (90o) and are locked at their connection point in the corner.



KLUK Aluminum Window Advantages:



A special function is the top locking function of the sliding door. With this original design, it can effectively prevent the door body from shaking from left to right and derailing, and prevent the door body from being lifted by the misoperation of the bear child, causing the door body to get stuck by the wrong rail.

At the contact between the door panel and the wall panel, there is also a design of anti-collision adhesive tape to cushion the impact force when closing the door. In addition to ensuring the service life of the product, it also plays a role in noise reduction and mute.

The Hennessy sliding door rail adopts the flat rail design, which is smooth to push and pull, not easy to accumulate dust and garbage, and easy to clean and handle. The rail is made of stainless steel, with super bearing capacity to ensure smooth pushing and pulling and service life.



Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 0

Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 1

Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 9
Air Tightness 2.5<=q1<=2.0 level 7
Water Tightness 350<=△p>=700 level 6
Thermal Insulation 3.5>k>=3.0 level 5
Sound Insulation 20=<Rw+Ctr<25

level 3





Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 2


Name/Model: Promotional Aluminium Round Top Sliding Windows Multi Color Single/Double Glass
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO


Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)






Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 3

Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 4

Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 5

Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 6



Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 7



Glass Specification:



Single-Pane Glass: Simple and Cost Efficient
Due to lower costs, single-pane windows are great for garages, tool-sheds, and other non-heated outbuildings. Also, when single-pane windows get broken, they are less expensive to repair as you only need one pane of glass. If energy efficiency is a concern, dual- or triple-pane glass options are a wiser choice.



Dual-Pane Glass: The New Standard
Double glazing consists of two glass panes which are joined together usually through an aluminium spacer or a warm-edge spacer (polyamide profile) and sealed around with a special glue. They offer significantly higher thermal insulation and sound insulation compared to single glazing in which only one glass pane is applied.





 Products Sketches:



Security Burglar Proof Veranda Aluminium Sliding Windows Two Three Track Wood Grain 8
