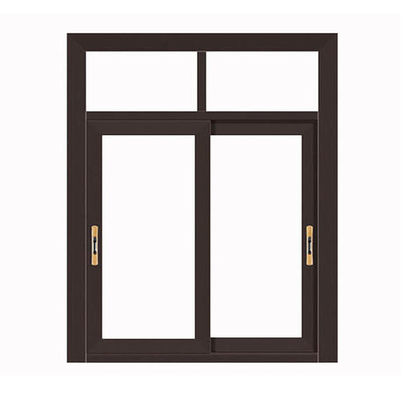

Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass

Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2016;ISO14001:2016
Model Number KNL66
Minimum Order Quantity 200 square meter
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C
Supply Ability 2000 square meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy Glass Hollow; Relective;Frosted; Tinted; Clear Tempered Glazing
Thickness 1.5-2.0mm Aluminium Push-Pull Windows Color Coffee;matt Black;deep Blue
Hardware Handle,lock,hinge,screw,load,U-shaped Hard Film,joint Seal,etc Opening Pattern Two/Three Track Horizontal Push-Pull
High Light

ISO9001 3 Track Aluminium Sliding Window

,

Aluminium Sliding Window With Mosquito Net

,

2.0mm 3 Track Aluminium Sliding Window

Leave a Message
Product Description



KNL66 Series Aluminium Sliding Windows Three Track Push-Pull Heat Insulation 5mm Glass





Introduction:



Three track sliding window is a kind of sliding window with three pulley tracks. Generally, three or more windows are needed to form a three track sliding window. The opening mode of the three track sliding window is simple and convenient, and the cleaning is also convenient. Three track sliding window can open two-thirds of the space, so that indoor ventilation effect is better, indoor and outdoor air can be very good convection. Moreover, the three track sliding window has good sealing performance, dust and moisture are difficult to enter, and its sound and heat insulation effect is also very significant. Due to the installation of the sliding rail system, there is no sound when the three rail sliding window is pushed and pulled, and the switch is convenient. The three track sliding window also has strong permeability. It is installed with transparent glass, which can provide large area of natural lighting. It is especially suitable for installation on the windowsill.



1. Pay attention to the safety performance when purchasing the three track sliding window. The frame of the three track sliding window on the market is basically made of aluminum alloy. When purchasing the three track sliding window, we should carefully observe the aluminum alloy quality of the frame. If you can in the purchase, let the business take out its cross-section to see. In general, aluminum magnesium alloy profile frame most of the use of primary color, will not add coating. And some businesses will be shoddy, the surface of recycled aluminum painted to deceive consumers. Therefore, when you buy the three track sliding window, you must let the merchants show the section of the product profile, so as to better understand the quality of the frame.

2. When choosing the three track sliding window, be sure to look at the upper and lower pulleys. The upper pulley of the three track sliding window plays a guiding role, so it is installed in the upper part of the track. However, some consumers tend to ignore these problems when they buy. Some high quality upper pulley will have complex structure, and its inner bearing and aluminum block can make the pulley slide stably without noise. Some consumers also buy three track sliding windows, they will feel that the lighter the sliding window is, the better, in fact, it is not. Generally good three track sliding window has certain self weight when sliding, and there will be no vibration phenomenon when sliding.



Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass 0



Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass 1


Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 8
Air Tightness 2.5<=q1<=2.0 level 5
Water Tightness 350<=△p>=700 level 4
Thermal Insulation 3.0>k>=2.5 level 5
Sound Insulation 25=<Rw+Ctr<30 level 3





Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass 2


Name/Model: Aluminium Sliding Windows Two/Three Track Push-Pull Thermal Insulation 5mm glass
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO


Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)





Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass 3

Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass 4


Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass 5




Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass 6
Two Track Aluminium Sliding Windows With Mosquito Net Heat Insulated Glass 7
