Thermal Insulation 6063 Aluminum Curtain Walls For Office Building

Brand Name KLUK
Certification ISO9001:2022;ISO14001:2022
Model Number 110 Series
Minimum Order Quantity 300 square meters
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C, D/P
Supply Ability 30000 square meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Frame Materials Aluminum Alloy 6063 Thickness 1.5 Aluminum Curtain Walls
Glass Hollow; Reflect; Frosted; Tinted; Clear Tempered Glazing Color Anodized,powder Coated
Hardware Tilt-In Sashes,handle,lock,hinge,screw Opening Pattern Exposed Frame
High Light

Thermal Insulation Aluminum Curtain Walls


6063 Aluminum Curtain Walls

Leave a Message
Product Description
2022 Popular Thermal Insulation Aluminum Curtain Walls For Office Building



Advantages of Aluminum Curtain Walls:



1. The aluminum panel curtain wall in the metal curtain wall has always played a leading role in the metal curtain wall. The lightweight material reduces

It provides a good selection condition for high-rise buildings.

2. Excellent waterproof, antifouling and anti-corrosion properties ensure that the external surface of the building will last forever.

3. Processing, transportation, installation and construction are relatively easy to implement, providing strong support for its wide use

The diversity of colors can be combined into different shapes.

4. It expands the design space of architects, has a high cost performance ratio, is easy to maintain, and has a long service life

Meet the requirements of the Owner.





1. Light Weight
Under the same area comparison, the quality of glass curtain wall is about 1 / 10 ~ 1 / 12 of that of painted brick wall, 1 / 15 of that of marble and granite facing wet construction wall, and 1 / 5 ~ 1 / 7 of that of concrete hanging slab. In general buildings, the quality of the internal and external walls is about 1 / 4 ~ 1 / 5 of the total weight of the building. The curtain wall can greatly reduce the weight of the building, so as to reduce the cost of foundation engineering.
2. Flexible design
With good artistic effect, architects can design various shapes according to their own needs, present different colors, coordinate with the surrounding environment, cooperate with lighting, etc., so as to integrate the building with nature and reduce the pressure of high-rise buildings.
3. Strong earthquake resistance
Flexible design, strong wind resistance and earthquake resistance, is the best choice for high buildings.
4. Systematic construction
Systematic construction is easier to control the construction period, and time-consuming is shorter.
4. Modernization
It can improve the novelty and technology of the building, such as photovoltaic energy-saving curtain wall, double-layer ventilation ventilation curtain wall and intelligent technology supporting design.
5. Easy to update and maintain
Because it is built in the peripheral structure of the building, it is convenient to repair or update it.



Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 8
Air Tightness 2.5<=q1<=2.0 level 5
Water Tightness 350<=△p>=700 level 6
Thermal Insulation 3.0>k>=2.5 level 6
Sound Insulation 35=<Rw+Ctr<40 level 5

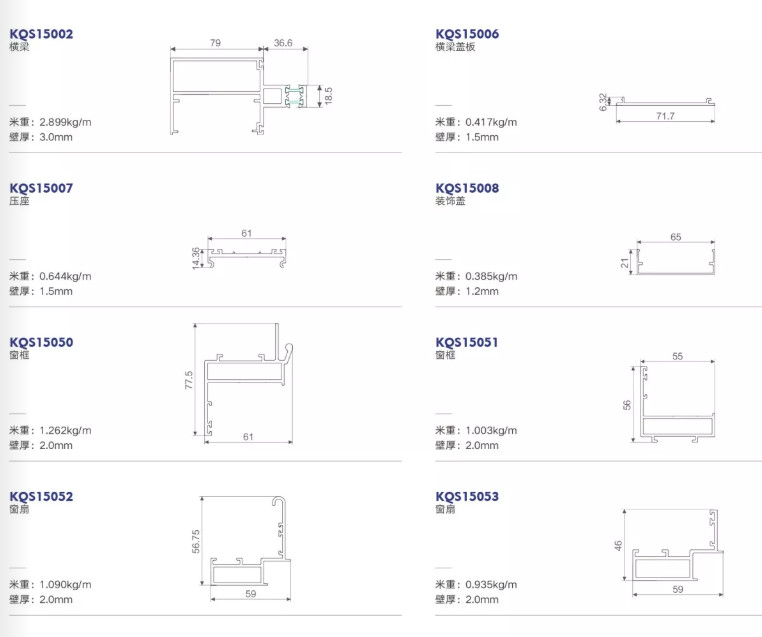

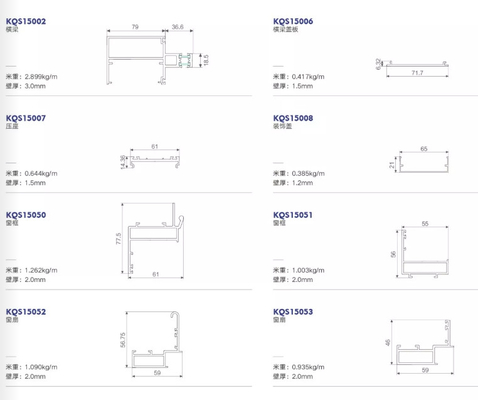

Thermal Insulation 6063 Aluminum Curtain Walls For Office Building 0

Name/Model: 2022 Popular Thermal Insulation Aluminum Curtain Walls For Office Building
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :

China Top brand: MACO

Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)

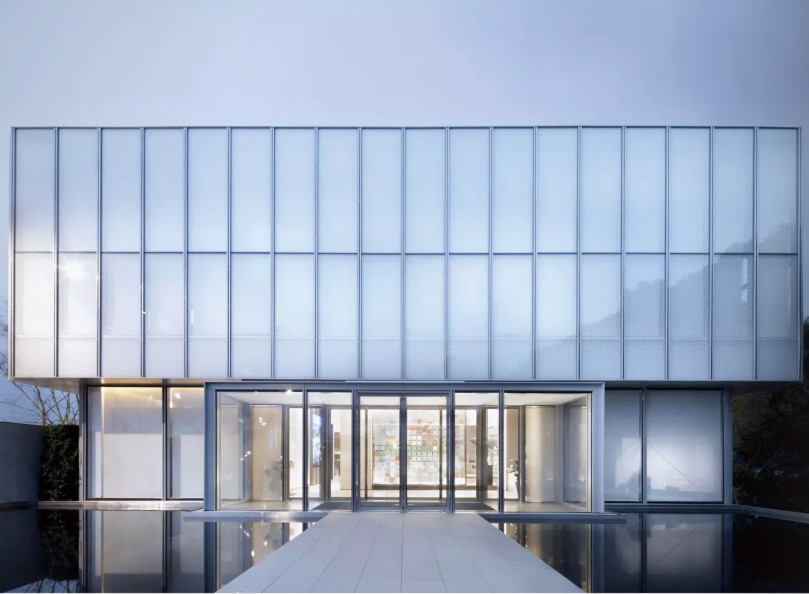

Thermal Insulation 6063 Aluminum Curtain Walls For Office Building 1

* The aluminum frame is not exposed

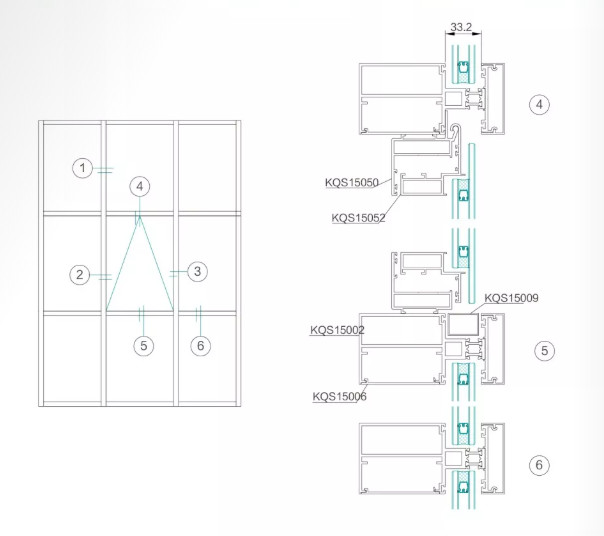

Thermal Insulation 6063 Aluminum Curtain Walls For Office Building 2
Thermal Insulation 6063 Aluminum Curtain Walls For Office Building 3
* Aluminum frame is visible

KLUK Aluminum Windows and Doors System Co.,Ltd is high-end brands growth in Guangdong Yonglong Aluminum.Guangdong Yonglong Aluminum Co.,Ltd is located in Sanshui District,Foshan City,which was established in 1997.Yonglong is a large comprehensive profile enterprise with research,development,manufacture and sales of aluminum alloy profiles.
After years of development and precipitation, the group's business is mainly divided into four majors:'HONG YING' aluminum brand,'KLUK' high-end aluminum windows and doors system brand,building aluminum formwork and industrial aluminum profiles.We have passed ISO9001:2015 quality management system certification,ISO14001:2015 environmental management system certification.With abundant comprehensive strength and high quality service,the brand HONG YING has been well sold all over the country and exported to many countries and regions including South Asia,Europe,South America and so on.



Thermal Insulation 6063 Aluminum Curtain Walls For Office Building 4
Thermal Insulation 6063 Aluminum Curtain Walls For Office Building 5
