2.0mm Aluminium Sliding Windows Double Tempered Tinted Glass Balcony With Inside Grill

Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2022;ISO14001:2022
Model Number KTA65
Minimum Order Quantity 300 Square Meters
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C, D/P
Supply Ability 3000 Square Meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy 6063 Glass Double Tempered Glazeing
Thickness 1.0-2.0mm Balcony Aluminium Sliding Windows Color Black,Grey
Hardware Fixed Hinge With Handle,bearing Roller,etc Opening Pattern Sliding,two Track Push-pull
High Light

2.0mm Aluminium Sliding Windows

,

Double Tempered Aluminium Sliding Windows

Leave a Message
Product Description

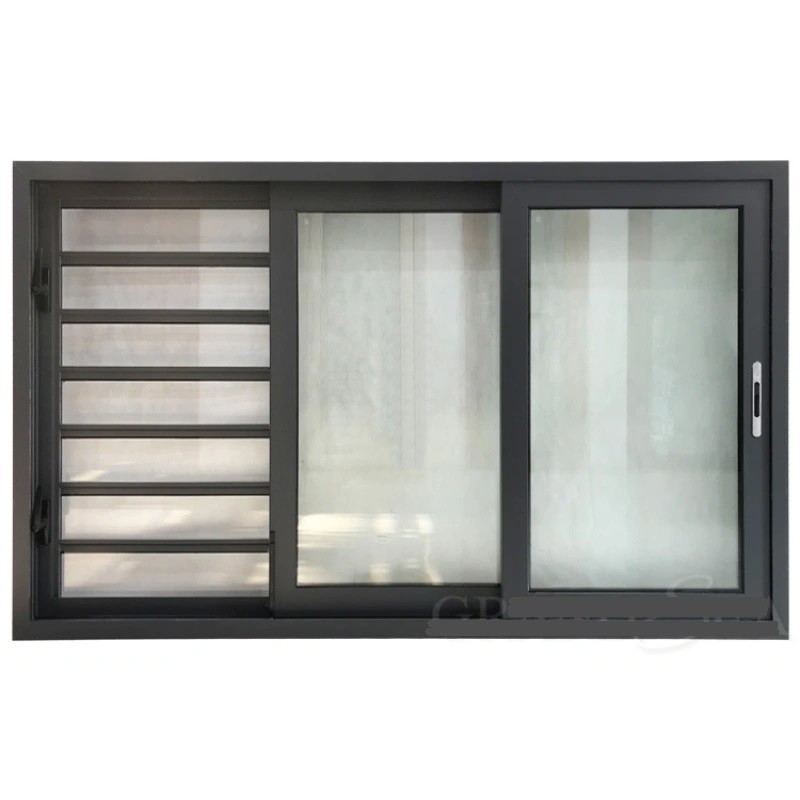

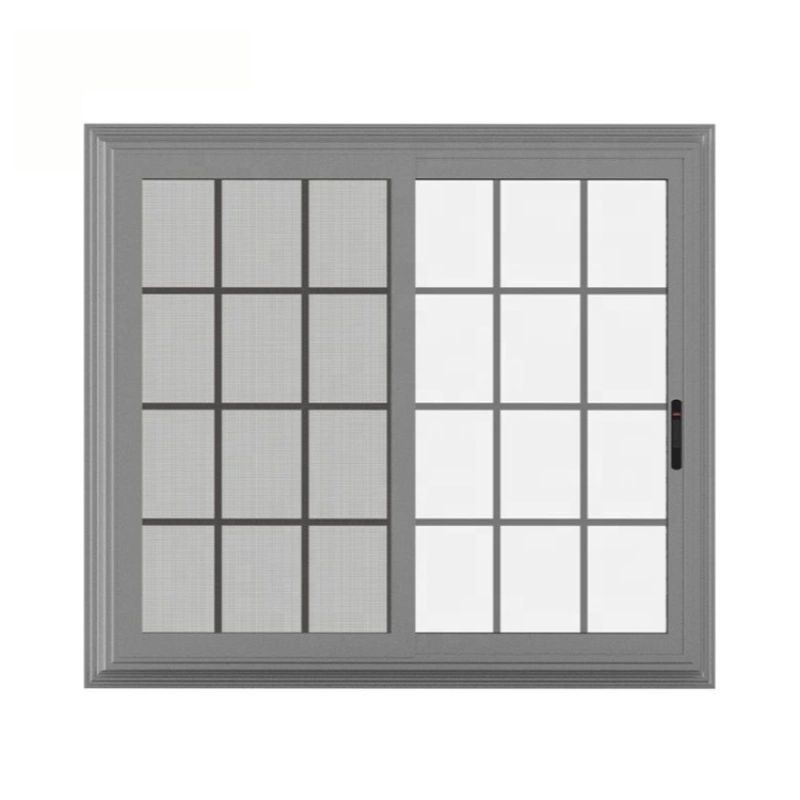

Aluminium Sliding Window Double Tempered Tinted Glass Balcony With Inside Grill







Introduction of Sliding Windows:



The advantages of RHD135 Series Sliding Window are simple, beautiful, large window width, large glass area, wide field of vision, and high lighting efficiency. Commercial aluminum sliding window is easy to clean, flexible, safe and reliable.Modern aluminium sliding system has a long service life, opens in a plane, takes up less space, and is convenient to install gauze. #90/138 Series Sliding Window adopts high-precision profiles, the profile thickness is 1.4mm, and it is equipped with 5+19A+5 double-layer tempered glass, which can be matched with lattice strips and craft glass. The design of the sliding system does not take up space, and the design of the sliding wide rail is conducive to the stability of load-bearing and window sashes.

Modern aluminium sliding system adopts the sliding track on the window frame with the window sash equipped with pulleys. The advantage of thiscommercial aluminum sliding window is that the window does not occupy additional space regardless of the opening and closing state, and the structure is relatively simple. #90/138 Series Sliding Window is generally most suitable for high-rise buildings with more than two floors. Because the opening method is a sliding way, commercial aluminum sliding window will not be outside like a casement window. To avoid falling objects from the window, modern aluminium sliding system are most suitable for high-rise buildings.



Door and Window Maintenance:



1. After the doors and windows are installed, the protective film on the profile surface shall be removed in time and cleaned; Otherwise, a large amount of adhesive on the protective film will remain on the profile, which is difficult to clean.

2. The sliding window sash shall be closed timely in windy days.

3. Do not hang heavy objects on the handle of casement window sash.

4. The side hung window can be opened differently by changing the direction of the switch handle. You should know how to operate it to avoid damage.

5. When the sliding window is in use, the sliding track shall be cleaned frequently to keep it clean, so that there is no hard particles on the track surface and in the slot.





Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 9
Air Tightness 2.5<=q1<=2.0 level 7
Water Tightness 350<=△p>=700 level 6
Thermal Insulation 3.5>k>=3.0 level 5
Sound Insulation 20=<Rw+Ctr<25

level 3





2.0mm Aluminium Sliding Windows Double Tempered Tinted Glass Balcony With Inside Grill 0


Name/Model: Aluminium Sliding Window Double Tempered Tinted Glass Balcony With Inside Grill
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO


Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)






2.0mm Aluminium Sliding Windows Double Tempered Tinted Glass Balcony With Inside Grill 1





2.0mm Aluminium Sliding Windows Double Tempered Tinted Glass Balcony With Inside Grill 2



2.0mm Aluminium Sliding Windows Double Tempered Tinted Glass Balcony With Inside Grill 3



2.0mm Aluminium Sliding Windows Double Tempered Tinted Glass Balcony With Inside Grill 4



2.0mm Aluminium Sliding Windows Double Tempered Tinted Glass Balcony With Inside Grill 5



Glass Specification:



Single-Pane Glass: Simple and Cost Efficient
Due to lower costs, single-pane windows are great for garages, tool-sheds, and other non-heated outbuildings. Also, when single-pane windows get broken, they are less expensive to repair as you only need one pane of glass. If energy efficiency is a concern, dual- or triple-pane glass options are a wiser choice.



Dual-Pane Glass: The New Standard
Double glazing consists of two glass panes which are joined together usually through an aluminium spacer or a warm-edge spacer (polyamide profile) and sealed around with a special glue. They offer significantly higher thermal insulation and sound insulation compared to single glazing in which only one glass pane is applied.





 Products Sketches:



2.0mm Aluminium Sliding Windows Double Tempered Tinted Glass Balcony With Inside Grill 6
