High And Low Waterproof Track Folding Door Thermal Break

Folding Door Installation:

The frame width of this series of plastic materials is 93mm, and the leaf width is 76mm, which is called 80 series broken bridge folding door;

The wall thickness of the main stressed parts of the profile is 2.0mm, and the wall thickness of the special parts is 2 SMM;

Open capacity can be even. Cardinality folding; For example: 2+0.2+2.3+0.3+2.3+3

China thermal miscellaneous uses Tylenol 14.8mm C-type waterproof and heat insulation strip Pa66+ge material:

Jiangyin Haida European standard sealant strip and EPDM material are used as miscellaneous materials;

Glass express is equipped with 5+27a+5 hollow glass as standard; Optional 5+20a+5.5+12a+5+12a+5:

It can be used in electric shutter, manual shutter and other styles:

The fans and frames of this series are connected by patent movable corner codes;

0e hall is equipped with 100mm plane door pocket line; 70mm European style, 80mm plane and 80mm arc surface are selected;

The pressing line is designed with a closed inner cavity and matched with foam strips;

The setting adopts three-dimensional plane and three cavity structure. The glass fan heat insulation frame is in the same position with the heat insulation band, and the isothermal surface is designed;

, accessories, standard Weiye self-developed accessories;

Aluminum toggle handle, aluminum handle, 80 people on the pulley block, and the hinge is closed.

The balance bearing is added in the hinge, with its own adjustment functio

Specification:

1. Anti pinch humanized safety design;

2. The upper and lower double bearing structure, with a single leaf of 150kg high bearing capacity, can be made with a maximum height of 4000mm;

3. There are two options: high waterproof track and low rail track;

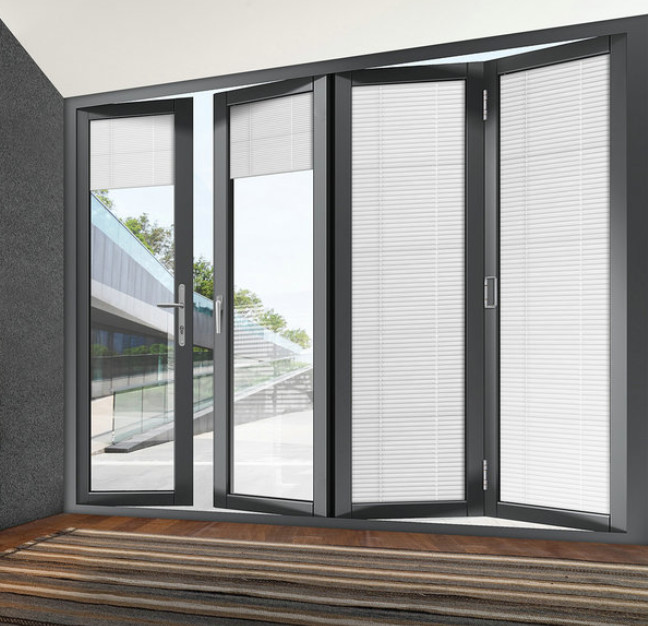

4. The glass notch can meet the installation of hollow electric louvers and experience the intelligent life experience;

5. The modern 90 ° corner panoramic folding mode makes the field of vision and space more open;

6. 5mm+21a+5mm hollow glass is standard.



Direction for use



1,Long life span (10-30 years), various colors for choice.

2,Durable, no deformation, no crack after long-time usage.

3,Security, can be closed and locked firmly.

4,Easy to install, with very nice appearance.

5,Fit for different rooms, with wide field of vision.



Description of application effect

1,Excellent weather resistance



2,excellent heat insulation and energy saving


3,excellent water resistance


4,excellent sound proofing


5,corrosion resistance
