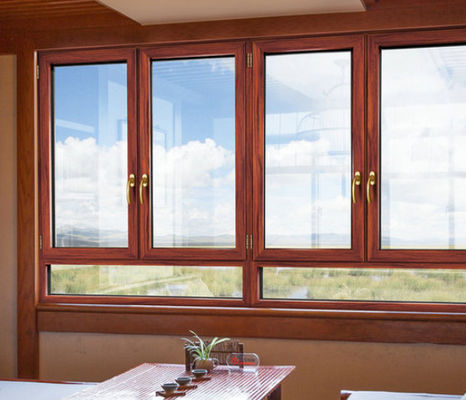

Thermal Break Wood Grain Aluminum Casement Window For Apartment

Aluminium Windows And Doors White Good Price Superior Brand French Casement Window

Thermal Break Aluminum Casement Windows:

Internal and external flat opening, internal opening, internal inversion, upper suspension, external opening and upper suspension; It can be equipped with electric flat opening, electric inverted and high window opening. The frame width of this series is 75mm, which is called 75 series bridge broken window

The wall of the main stressed part of the profile is 1.6mm, and the reinforced part is 1.8mm; Tylenol 24mm, C-type waterproof and thermal insulation strip, pa66+ge material; Guxin

Jiangqi Haida European standard sealant strip is used, with 3 seals, EPDM material:

The size of the glass opening is 39mm, with 5+20a+5 hollow glass as standard; Optional 5+16a+5, s+27a+s, can be used as electric shutter, manual shutter and other styles, but also can choose to match with TG version edge spacer;

The door is equipped with 80mm plane door pocket line; 70mm European style, 80mm arc surface and 100mm plane are available; Haidiao

The window sash is assembled by corner joint and then injected with glue. The frame and middle column are connected by patented movable corner code and crimped

Unified closed cavity pressure line design, with foam strips; Lie to the country

It adopts three-dimensional plane, three cavity structure, glass reading fan insulation frame insulation tape in the same position, and the isothermal surface is not counted; style

It can be used for 90 ", 135 * corners; parts

1. Germany Haobo holds gold and silver:

The internal accessories are German norto brand (transmission fly, invisible dumpling chain and lock point lock seat]; 2. It can make a complete set of accessories for high-end hardware "sobenko" imported from Belgium.

3. It can be matched with Weiye's special suppression motor, which is hidden in the inner cavity of the profile;

The motor can be controlled one by one, including the mobile app and the panel on the window frame;

Introduction:

A style of windows in folk houses. The opening and closing of window sash is moving along a certain horizontal direction, so it is called "casement window".
Casement windows are divided into push-pull type and hanging type. Its advantages are large opening area, good ventilation, good sealing, sound insulation, heat preservation and impermeability. The inside opening window is convenient to clean, and the outside opening window does not occupy space. The disadvantage is that the window is small and the field of vision is not wide.
The opening of external windows takes up a space outside the wall, which is easy to be damaged when the wind blows; while the opening of internal windows takes up part of the indoor space, so it is not convenient to use the screen windows, and it is also not convenient to use the screen windows and curtains when opening the windows. If the quality is not up to standard, it may also seep rain.

Name/Model: 75 Series Thermal Break Wood Grain Aluminum Casement Window Profiles: 6063-T5 high quality aluminium extrusion profiles Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing Glass Choice: 5mm; 6mm,12mm single tempered glazing 5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass 5+6A+5+6A+5mm triple glass 5+0.76+5mm;6+2.28+6mm Laminated other glass type you need Color: matt black;white;ultra silver;clear anodized;nature clean aluminium Any color available Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium) white or other color Hardware :   China Top brand: MACO   Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing; Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys Guarantee : Years Security: Crimsafe mesh ; Grille available Application: Building(office/hotel/apartment)
