House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame

Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2021;ISO14001:2021
Model Number KHD75B
Minimum Order Quantity 300 square meters
Price Negotiation
Packaging Details Pearl cotton, foam cotton, plywood paper, film, wooden box
Delivery Time 25-30 days
Payment Terms T/T, L/C, D/P
Supply Ability 30000 square meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy 6063 Glass 4mm+10A+4mm Clear Tempered Glazing
Thickness 1.0-2.0mm Aluminium Swing Windows Color Deep Grey,etc
Hardware Firm Handle,security Lock,lock Point Opening Pattern Two Side Vertical Swing(glass+mesh)
High Light

Double Glazed Mesh Aluminum Swing Window

,

House Aluminum Swing Window

,

Alloy 6063 Swing Window

Leave a Message
Product Description

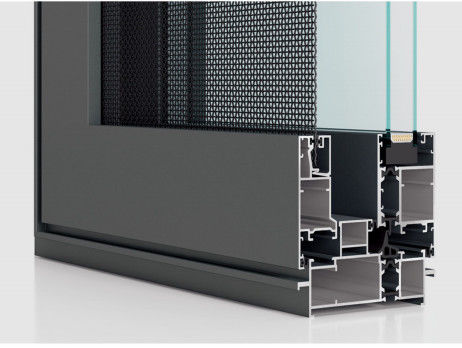

KHD75B House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame







Swing/Casement Windows:





Commercial casement windows built-in broken aluminum alloy glass fan at the same time, external gold steel mesh screen sash; in the anti-mosquito, anti-theft, but also can achieve internal ventilation. Commercial casement windows gives a very comfortable living experience. #138 Series Thermal-break casement window has national appearance patents and adopts Cadillac design, with clear edges and corners and beautiful lines. European style casement windows shows a bold personality, and an unusual temperament. #138 Series Thermal-break casement window equipped with a 4-point lock, which can prevent theft and prevent flooding. And flexible operation, feel comfortable, easy to use. The use of automotive-grade foam composite tape, watertight, airtight and sound insulation better.

High quality profiles create high quality windows, making commercial casement windows light weight, high strength, precise and accurate processing and assembly, so they are light and flexible to open and close, commercial casement windows are not too noisy, easy to use and maintain, better heat and sound insulation effect, corrosion resistance, small deformation, european style casement windows have strong fire resistance, long service life, can be matched with various hardware brands at home and abroad, multi-chamber design profile structure, #138 Series Thermal-break casement window with high strength, multi-point lock, good anti-theft performance, three-sealed waterproof, good air tightness effect , European-style decorative lines are integrated with window covers and furniture.




Kinds of Mosquito Screens:


At present, the quality of window screens and screens is generally the same in China. Although some screens are good-looking, they are useless. Springs and bearings are generally similar, nothing. China's general civil industrial technology is still reassuring. The screen window is used smoothly and the aluminum material is solid. The most important thing is that the sealing around the screen is good! It is better not to make folding and not resistant to strong wind (strong wind resistant refers to the one with zipper locked in the track). The best choice: invisible screen with protective fence, strong wind resistant invisible screen and anti-theft screen### At present, screen windows on the market mainly include: magnetic screen window, folding screen window, moving window, detachable screen window, push-up screen window, etc. a folding screen window has the advantages of being suitable for all window types, invisibility and convenient opening and closing. Disadvantages: high maintenance volume, not easy to clean, high cost, poor replacement of screen mesh and poor sealing, which will destroy the original window type. B moving window has the advantages of low maintenance volume and lower cost compared with folding screen window, Although it can be removed for cleaning, it is inconvenient. Disadvantages: it is only suitable for installation on the moving window, it is not easy to change the screen, and the sealing effect is not good. C detachable screen advantages: invisible, suitable for a variety of window types. Disadvantages: high maintenance, it is not easy to change the screen, high cost, and occupies a certain position of the window frame,



Swing Introduction:



Swing Hanging window refers to the hinge mounted on the upper side of the window, which opens inward or outward. Hanging window is a kind of aluminum alloy and plastic steel window that appeared later. It is a new form developed on the basis of casement windows. It can be opened in two ways, either horizontally or from the top. When the casement window is closed, pull the upper part of the window inward to open a gap of about 10 cm, that is to say, the window can be opened a little from the top, the open part is suspended in the air, and is connected and fixed with the window frame through hinges, so it is called hanging type. It has the advantages of both ventilation and safety. Because of the hinge, the window can only be opened 10 cm, and the hand can not reach in from the outside. It is especially suitable for use when there is no one at home. Recently, this kind of function has not only been limited to the flat window, but also the sliding window can be suspended to open.

The layout of windows should pay attention to the following points:
(1) When the windowsill height is less than 800mm (residential building windowsill height is less than 900mm), there must be protective facilities when there is no balcony or platform outside the window.
(2) Waterproof measures should be taken for the outer window sill, and the gaps between the window frame and the window sash, and between the window sash and the window sash should be handled well. Meanwhile, the inner sill should be 15mm higher than the outer sill.
(3) The opening form of windows should be convenient to use, safe and easy to clean. The windows on the ground floor shall be provided with protective measures, and the bottom height of the window sash opening to the public corridor shall not be less than 2m.





House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame 0





House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame 1







Performance Parameter       National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 9
Air Tightness 2.5<=q1<=2.0 level 8
Water Tightness 350<=△p>=700 level 7
Thermal Insulation 3.0>k>=2.5 level 4
Sound Insulation 35=<Rw+Ctr<40 level 5





House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame 2


Name/Model: KHD75B House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO


Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)





House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame 3




House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame 4
House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame 5

House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame 6


House Double Glazed Mesh Aluminum Swing Window Deep Grey Frame 7
