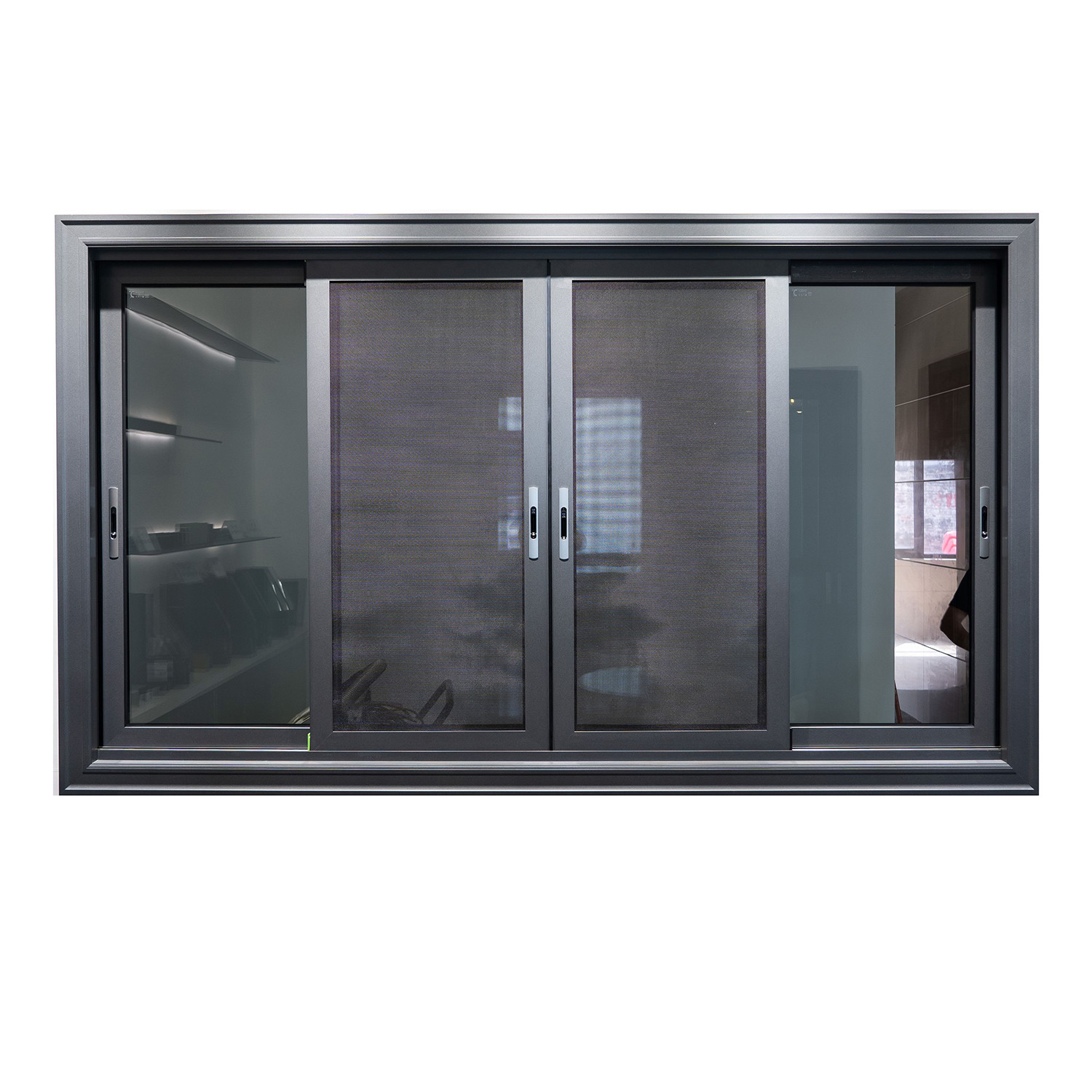

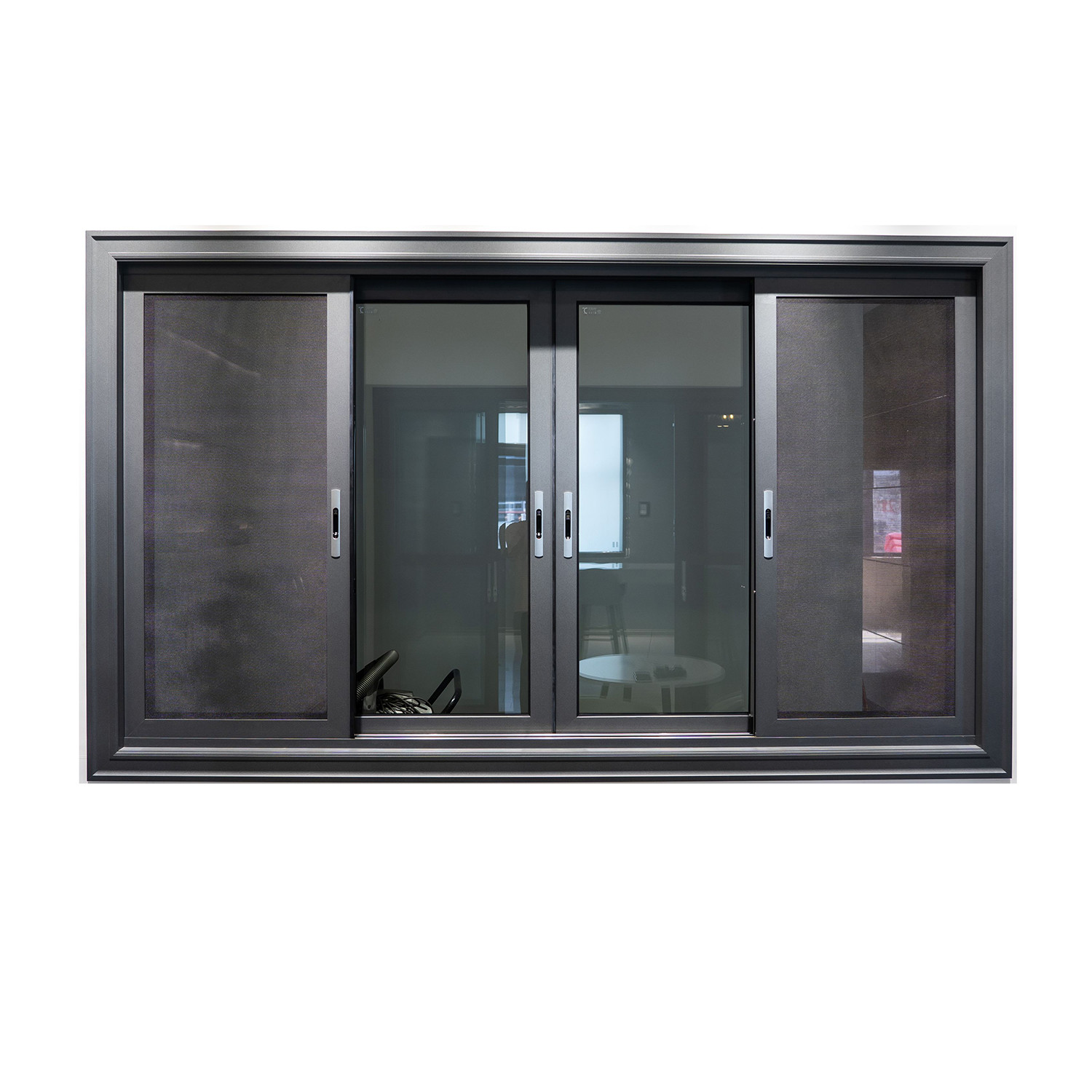

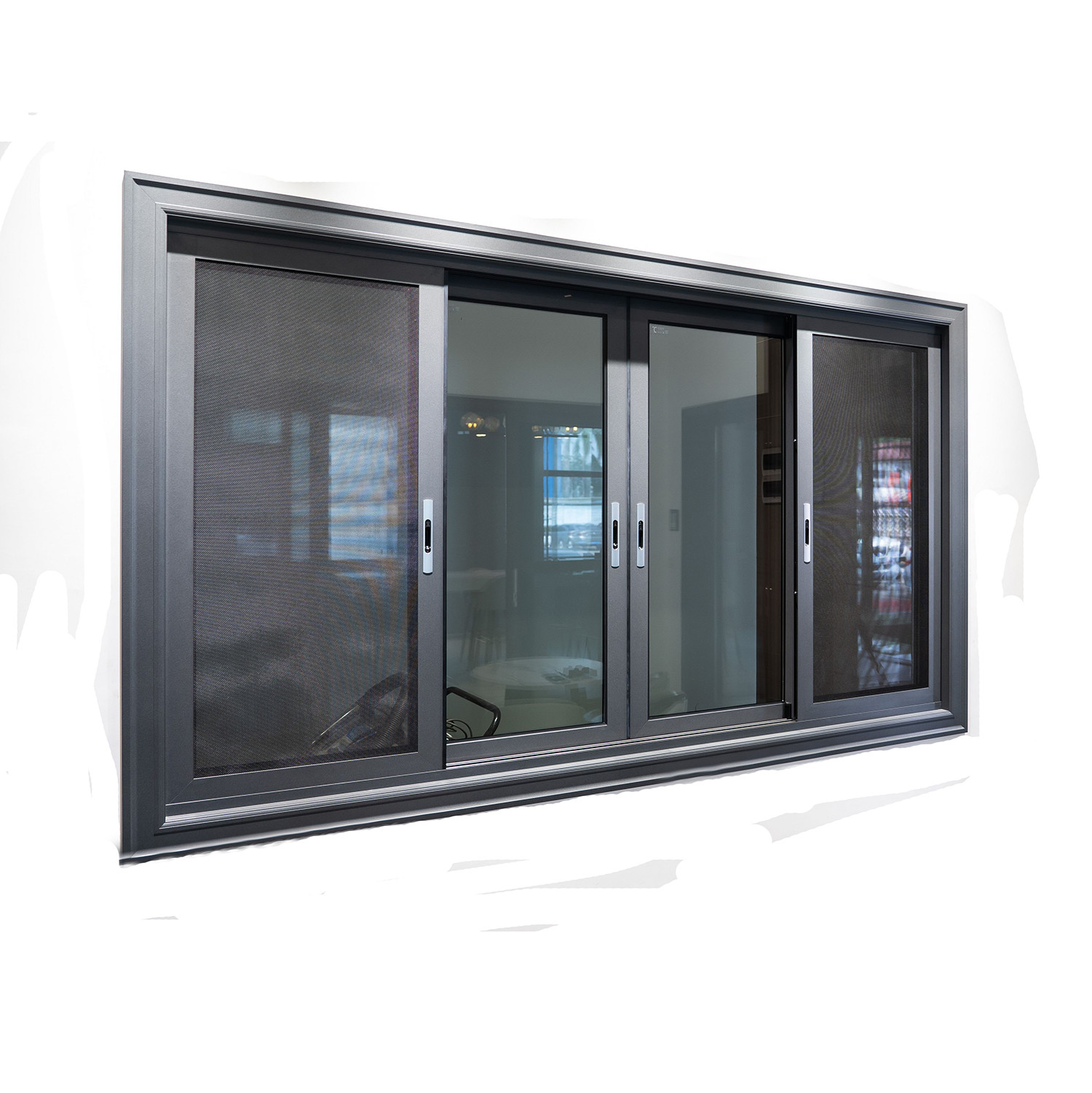

Interior Double Glazed 6063 Aluminium Sliding Windows With Two Track

How to install screen window for sliding window:

Sliding window: divided into left and right, up and down. The sliding window has the advantages of not occupying indoor space, beautiful appearance, economic price and good sealing. It adopts high-grade slide rail, which can be opened flexibly with a slight push. With large pieces of glass, it not only increases the indoor daylighting, but also improves the overall shape of the building. The stress state of the window sash is good and not easy to be damaged, but the ventilation area is limited to a certain extent.
1. Assemble the yarn box, air slot and bottom pad, and then screw them up with six screws to make it a square frame.
2. Place the screen window at the installation position. Note that the edge distance between the left and right air ducts and the door and window frame should be symmetrical left and right. The bottom position should be about 5cm lower than the frame of the door and window frame. After placing it, clamp the left and right sides so that it cannot be moved.
3. Use an electric drill and a 3.2mm drill to drill holes at the inner side of the pimp of the door and window frame.
As required, make 6 to 14 holes in the left and right air ducts and the corresponding places under the bottom, and then screw in the screws to complete the installation.

Introduction of Sliding Windows:

Sliding windows and doors are a very good option in case you need to cover spans which have a width larger than 1.70 m. Moreover, sliding windows are the ideal option when you have limited space around your window. Also, for large spans you can use a technologically superior lift & slide system that is much easier to slide and provides an excellent tightness against air and water, thanks to the special lift mechanism that raises the sash, allowing its rollers to glide smoothly on the rail of the frame. Modern sliding windows and doors have come a long way and provide reliable solutions, with excellent functionality.
ALUMIL offers a wide variety of sliding or lift & slide windows and doors: Round Sliding Windows
Horizontal sliding windows – In which multiple sliding windows stand next to each other on separate sliding tracks.
Meeting stile windows – In which two sliding windows stand on the same sliding track and are locked at their connection point in the middle.
Pocket windows – Usually, one or two sliding windows which when opened are hidden into to the wall.Round Sliding Windows
Corner windows – Constructions in which two sliding windows make a right angle (90o) and are locked at their connection point in the corner.

Glass Specification:

Single-Pane Glass: Simple and Cost Efficient
Due to lower costs, single-pane windows are great for garages, tool-sheds, and other non-heated outbuildings. Also, when single-pane windows get broken, they are less expensive to repair as you only need one pane of glass. If energy efficiency is a concern, dual- or triple-pane glass options are a wiser choice.

Dual-Pane Glass: The New Standard
Double glazing consists of two glass panes which are joined together usually through an aluminium spacer or a warm-edge spacer (polyamide profile) and sealed around with a special glue. They offer significantly higher thermal insulation and sound insulation compared to single glazing in which only one glass pane is applied.

Double-Pane Energy Efficient Glass: Save energy & money thanks to the use of energy efficient double glazing.
Energy efficient double glazing, also known as low-emissivity glazing, is structured like conventional double-glazing, but has special glasses offering higher thermal insulation thanks to the insulation gas which is filled in between the two glass panes.
Specifically, it is composed of two glass panes which are joined together usually through an aluminium spacer or a warm-edge spacer (profile) and sealed around with a special glue. The first glass pane is a clear float glass, whilst the second one is specially processed by applying a low-emissivity layer (low-E Glass), which ensures high reflection of the sun’s infrared radiation and diminishes in that way infrared radiation transmittance in interior spaces. In addition, as mentioned above, the space between the two glass panes is filled with argon gas for enhanced thermal insulation.
So, through energy efficient double-glazing, lower thermal loses from the interior to the exterior environment of your house are possible. Moreover, the undesired heat during summer is reduced due to reduction of the intense sun radiation, thus ensuring better climatic conditions.
