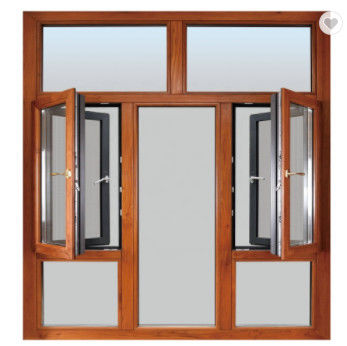

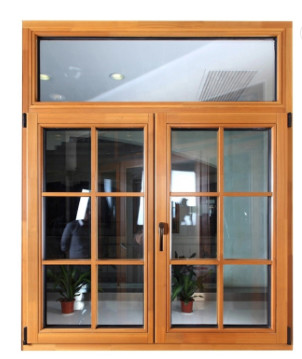

KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh

Place of Origin China
Brand Name KLUK
Certification ISO14001, ISO45001,ISO9001
Model Number SW 003
Minimum Order Quantity 100pcs
Packaging Details Customized
Delivery Time 25days
Payment Terms D/A, D/P, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Packging Customized
Size Customized Delivery 25Days
High Light

ISO14001 double swing out windows

,

Grille Aluminium Swing Window

,

KLUK Aluminium Swing Window

Leave a Message
Product Description



                KLUK 2020 New Aluminium Swing Grille Windows



Product Description

KLUK 2020 New Design Tempered Double Glass Aluminium Swing Grille Windows
Main Features
1) Strong plasticity Aluminum alloy doors and windows are metal materials, aluminum and various metal elements cast into a variety of alloys, with other doors and windows have unparalleled advantages, light weight and high strength, can be extruded into a variety of complex cross-section profiles.
2) Good sealing performance
Sealing properties include water tightness, air tightness, heat insulation, sound insulation.
3) Long service life
Aluminum alloy doors and windows can be opened and closed lightly and flexibly, without noise, easy to use and maintain, corrosion resistance, small deformation, strong fire resistance and long service life (50-100 years).
4) Excellent weather resistance
Anti-acid and alkali corrosion and free from air pollution.Acid rain. Ozone attack, UV-resistant, long-term to maintain the inherent color and luster.
KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 0
KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 1
KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 2
Opening style
casement windows
Frame Material
Aluminum alloy
Color/Size
Customized
Profile
A. Aluminum alloy, 6063-T5, can be thermal break
B. Wall thickness: 1.2, 1.4, 1.6, 2.0mm, can be customized
C. Surface treatment: anodized, electrophoresis, powder coated, color can be
customized

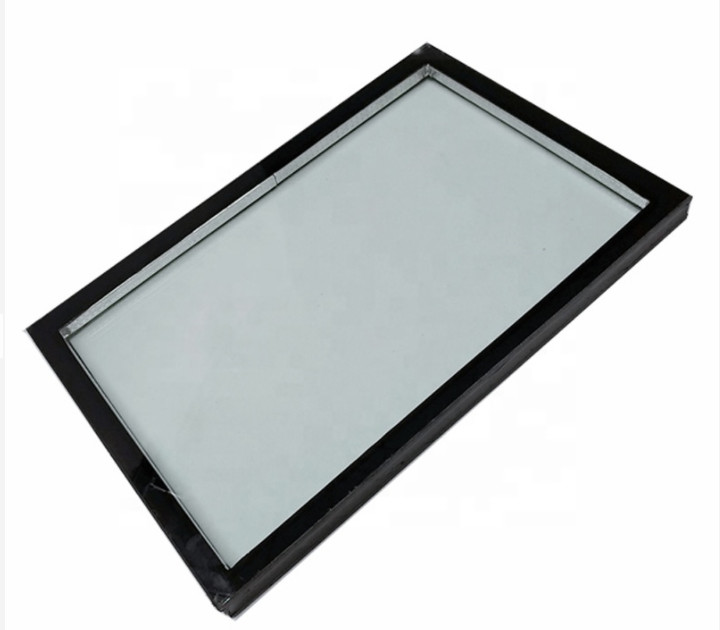

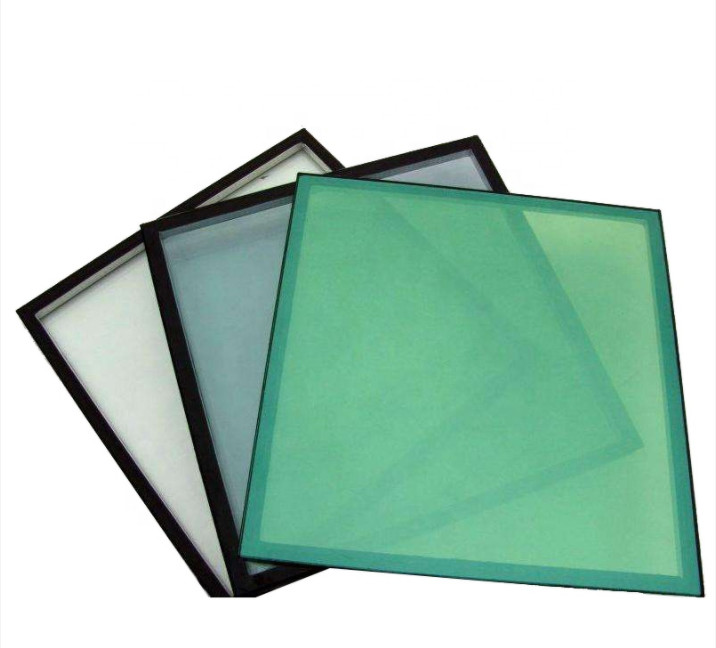

Glass option
A. Single glass: 5,6,7,8,10,12,15,19mm Tempered Glass
B. Double glazing: 5+ 6/9/12/20 +5mm Tempered Glass
C. Laminated glass: 5+ 0.38/0.76/1.52PVB+5mm Tempered Glass
D. Tinted/Reflect Glass/Tempered Glass
E: Customized
Hardware
A. Made in China
B. Made in Germany
C. Customized
Fly screen
A. Stainless steel security mesh
B. Aluminum security mesh
C. Fiberglass fly screen
D. Retractable & invisible fly screen
Surface finish
Powder coated/Anodized/Electrophoresis




Detailed Images
Advantages of our products:
1) The maximum opening possible is achieved when full open the doors.
2) Panels connected together in a line, can be hinged off both side jambs to meet in a number of ways. When open, panels remain 90 degrees to open.
3) Meet or exceed industry standard for air tightness, water-proof, sound insulation, heat insulation.
4) The carrying capacity of the glide system in bottom can reach 180 KG, it is smooth, steady and noiseless when fold the door.
5) Double water-proof sealing trips and drainage system in bottom track thoroughly solve the problems of sealing trip ageing and leakage.
KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 3KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 4KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 5KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 6KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 7KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 8
KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 9KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 10KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 11KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 12KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 13KLUK Aluminium Swing Windows , Double Swing Out Windows With Grill And Mesh 14

Surface:



1. The principle of electrophoresis technology



The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.

The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.



2. Excellent performance of products



high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.



3. The principle and application of paint extinction



With electrophoresis coating technology development, in the coating industry in China, also become the world’s top coating production, forming a related industry group, and actively promote the technological revolution and development of traditional painting domain. During this period, the bright and bright gloss paints are popular with consumers with their bright colors and bright colors, and in a long time, the coating market. However, as people’s living standard has been improved, on the one hand, consumers have felt that the high gloss coating is more serious than the reflection, which is harmful to people’s eyes. On the other hand, the aesthetic concept of consumers is more and more casual, fashionable and personalized. Coupled with the booming demand of China’s electronics and appliance industries. These factors led to a sharp increase in demand for low-gloss coatings with a soft appearance. At the same time, it is necessary to consider how to produce paint with matte performance.



3.1.1 Determination of gloss and luster



The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sublight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.







Please tell us the information below, and we will give the best suggestion to you !



1. Where you intend to use the aluminium windows?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
