Contact Person : Susan Chu

Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows

Place of Origin China
Brand Name KLUK
Certification ISO14001, ISO45001,ISO9001
Model Number Sliding Folding Aluminum Window
Minimum Order Quantity 100pcs
Delivery Time 25-30days
Payment Terms L/C, D/P, T/T, MoneyGram, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Sunscreen Interior Sliding Windows

,

Soundproofing aluminium glass folding doors

,

Sunscreen Modern aluminium glass folding doors

Leave a Message
Product Description

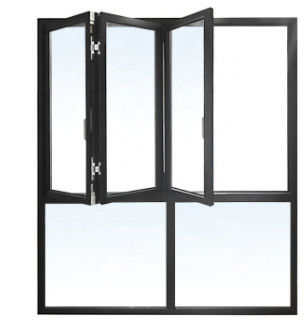

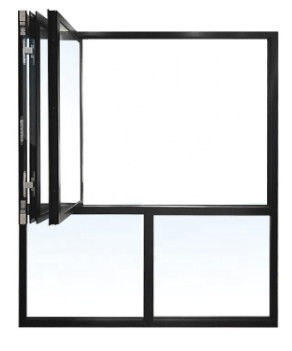

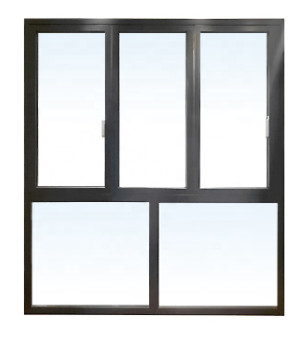

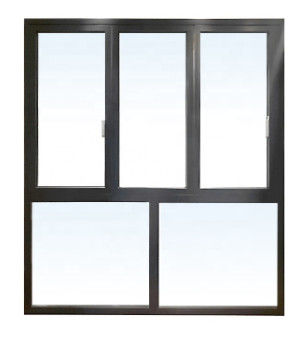

Modern Interior Sliding Folding Aluminum Window



Model
KPD-1043
Material
Aluminum alloy
Screen Netting Material
Stainless steel
Thickness Profiles
1.2mm /1.4mm /1.6mm /1.8mm /2.0mm


Glass Types
A. Single glass: 5, 6, 7 , 8, 10, 12mm Tempered Glass
B. Double glazing: 5mm+ 6/9/12/15/18A +5mm Tempered Hollow Glass
C. Laminated glass: 5mm+0.76A+5mm Tempered Glass
D. Triple/coating/mirror glass can be cutomized
Color Optional
Customized colors
Open Style
Bi-folding door
Handware
Germany Hopo,Chinese brand
Feature
Waterproof/ soundproof/ sunscreen
Project Solution Capability
Graphic design,3D model design
After-sale Service
Online Technical Support,Return and Replacement
Warranty
  • 10 years warranty for non-human damage



Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 0
Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 1
Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 2
Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 3
Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 4

<<< Aluminum Profile >>>
Used 6063-T5 thermal break or non-thermal break aluminum profile.Thickness 1.4mm-3.0mm for choosing. —Different design for bi-folding door with simple aluminum frame, modern design and save space
Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 5
Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 6

<<< Door Handle >>>

Chinese Top Brand High Quality Handles

Handle design unique, although the lines are simple but thick texture, performance is not reduced.
The window sash is equipped with anti - clip hand design, with buffer tape, fingers inserted into the gap will not be hurt.

<<< Door Accessories>>>



Full set of KSBG hardware system imported from Germany, high precision, good material, strong and wear-resisting.In particular, the hardware design between the window sashes is unique, the use of new hinge, do not destroy the outside between the side window sashes of the rubber.

Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 7


Clolor Colloection



 Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 8Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 9Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 10Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 11Soundproof Aluminium Glass Folding Doors , Sunscreen Interior Sliding Windows 12

Surface:



1. The principle of electrophoresis technology



The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.

The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.

For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.



2. Excellent performance of products



high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.



3. The principle and application of paint extinction



With electrophoresis coating technology development, in the coating industry in China, also become the world’s top coating production, forming a related industry group, and actively promote the technological revolution and development of traditional painting domain. During this period, the bright and bright gloss paints are popular with consumers with their bright colors and bright colors, and in a long time, the coating market. However, as people’s living standard has been improved, on the one hand, consumers have felt that the high gloss coating is more serious than the reflection, which is harmful to people’s eyes. On the other hand, the aesthetic concept of consumers is more and more casual, fashionable and personalized. Coupled with the booming demand of China’s electronics and appliance industries. These factors led to a sharp increase in demand for low-gloss coatings with a soft appearance. At the same time, it is necessary to consider how to produce paint with matte performance.



3.1.1 Determination of gloss and luster



The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sublight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.
