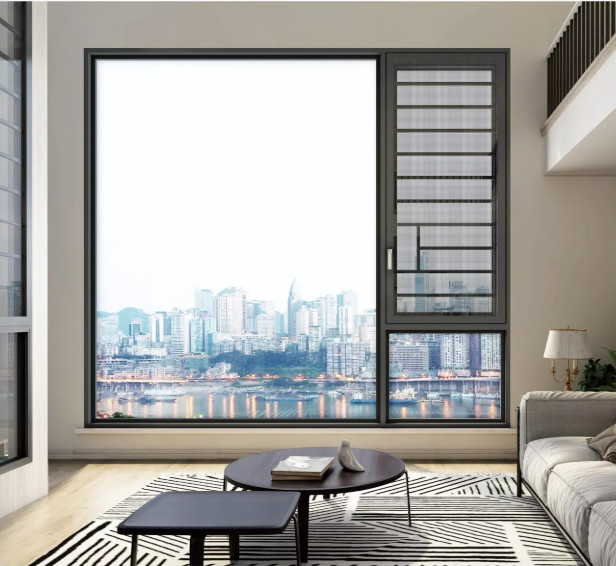

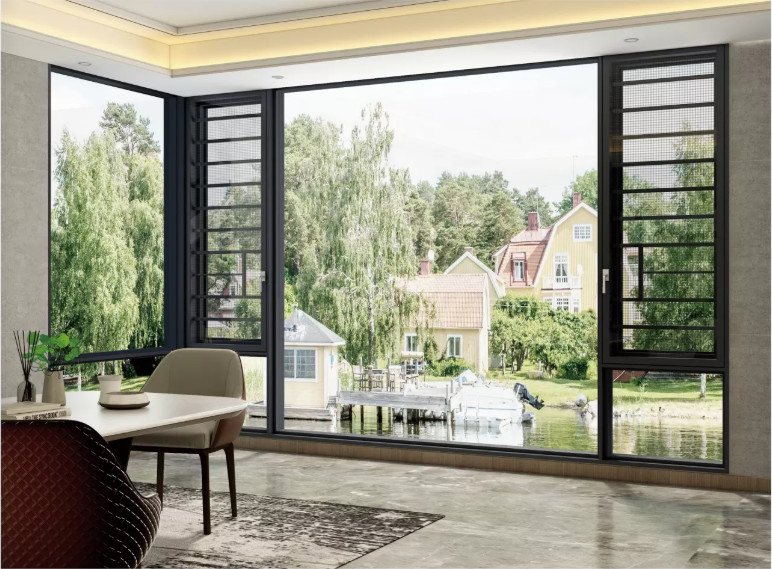

T5 Aluminium Casement Window Screen Integrated Inward Outward Opening System

75 Series Aluminium Window Screen Integrated Window Inward/Outward Opening System

Aluminium Window Screen Integrated Window Inward/Outward Opening System

Specification:

Product characteristics

The fixed pressing line and the shape of the window sash are designed with Gothic arc, showing the overall perfection and fullness; The light shines on the thick pressing line through the wide glass hollow, creating a unique sense of slender and solemn ceremony; It symbolizes the solemn and persistent guard spirit of the royal guards. In the cold winter and hot summer, they always stick to their posts and protect the peace and temperature of their homes.

Design highlights

Five cavity double broken bridge thermal insulation structure

Design of multi-layer sealing and drainage

Load type transmission hardware system

Gauze fan with metal angle protection

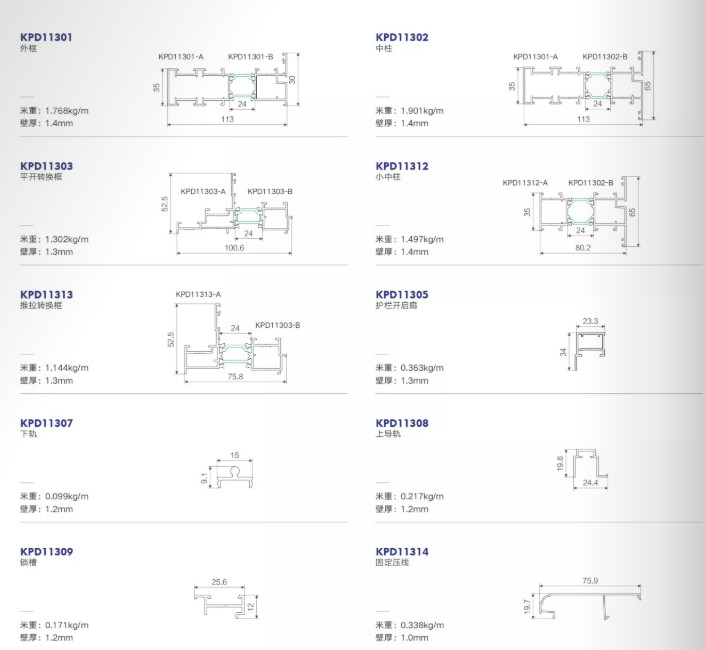

Ultra new national standard profile wall thickness

Aluminum casement windows with railing:

There are two ways to ventilate a flat window, one is to fiddle with a sliding door, the other is to swing it outward. However, because the relative height of the room can not be stepped on, children can easily climb up when they move a chair. If there is a standard, they think that the casement window should be replaced by the inverted window. The overall planning of this type of window is to turn up the opening. When the window is released by turning the rocker, the lower side of the window remains unchanged, and the upper side moves out of the window. For example, the cross section of several windows is V-shaped. It is unlikely that the skill can turn out of the window through this type of window, ensuring safety. There are two kinds of casement windows, namely, separate window and external window. The interior opening is conducive to cleaning the windows, but it occupies the interior space design when opening. The production and manufacturing are unreasonable, and it will leak inward in rainy days. The outward window sash has good moistureproof performance and does not occupy the indoor space when it is open, but it is easy to be damaged in heavy rain and wind, so it requires high compressive strength of hardware. The large advantage of casement window is that it has good sealing performance, the sash can be opened as many as possible, which is conducive to natural ventilation and simple structure; The disadvantage is that the cost of hardware is high and the price is expensive. Bridge cutoff aluminum doors and windows

Advantages: There are sealing gasket decorative strips between the window sash and the window, with good closing performance;

The external casement window has good moisture-proof performance and does not occupy the indoor space when it is open; The inner casement window is conducive to frequent scrubbing and unremitting window cleaning.

Name/Model: Aluminium Window Screen Integrated Window Inward/Outward Opening System Profiles: 6063-T5 high quality aluminium extrusion profiles Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing Glass Choice: 5mm; 6mm,12mm single tempered glazing 5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass 5+6A+5+6A+5mm triple glass 5+0.76+5mm;6+2.28+6mm Laminated other glass type you need Color: matt black;white;ultra silver;clear anodized;nature clean aluminium Any color available Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium) white or other color Hardware :   China Top brand: MACO   Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing; Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys Guarantee : Years Security: Crimsafe mesh ; Grille available Application: Building(office/hotel/apartment)
