2.0mm Thick Aluminium Curtain Walls Exposed Hidden Frame Glass Curtain Wall System

Hidden Frame Aluminum Curtain Walls:

The hidden frame glass curtain wall is to bond the glass to the aluminum frame with silicone structural sealant (referred to as structural sealant). In most cases, no metal connectors are added. Therefore, the aluminum frame is completely hidden behind the glass, forming a large-area all glass mirror. In some projects, the vertical glass curtain wall adopts the hidden frame curtain wall with metal connectors. Metal fasteners can be used as safety measures, but they are easy to break the glass due to concentrated stress.

The glass and aluminum frame are completely bonded by structural adhesive. The structural adhesive shall bear the dead weight of the glass, the wind load and earthquake action borne by the glass, and the influence of temperature change. Therefore, the structural adhesive is the key link of the safety of the hidden frame curtain wall. The structural adhesive must be able to effectively bond all materials in contact with it (glass, aluminum, weather resistant adhesive, cushion block, etc.), which is called compatibility.

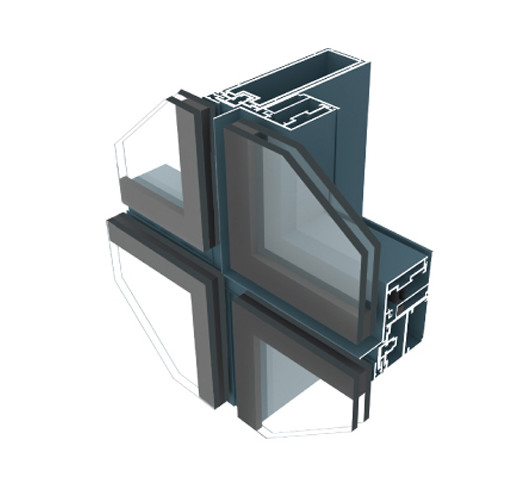

1. The glass is fixed on the sub frame with silicone structural sealant, and the sub frame is fixed to the main frame (column and beam) by mechanical clamping. The structural glass assembly components are completely separated from the main frame, which is one of the biggest characteristics of the component construction of hidden frame glass curtain wall.

2. Structural glass assembly components are manufactured in professional production workshops, with guaranteed glue injection quality and processing accuracy, saving silicone structural sealant.

3. The columns and beams are cut by the manufacturer, with high processing accuracy and less material waste.

Features:

1. Light Weight
Under the same area comparison, the quality of glass curtain wall is about 1 / 10 ~ 1 / 12 of that of painted brick wall, 1 / 15 of that of marble and granite facing wet construction wall, and 1 / 5 ~ 1 / 7 of that of concrete hanging slab. In general buildings, the quality of the internal and external walls is about 1 / 4 ~ 1 / 5 of the total weight of the building. The curtain wall can greatly reduce the weight of the building, so as to reduce the cost of foundation engineering.
2. Flexible design
With good artistic effect, architects can design various shapes according to their own needs, present different colors, coordinate with the surrounding environment, cooperate with lighting, etc., so as to integrate the building with nature and reduce the pressure of high-rise buildings.
3. Strong earthquake resistance
Flexible design, strong wind resistance and earthquake resistance, is the best choice for high buildings.
4. Systematic construction
Systematic construction is easier to control the construction period, and time-consuming is shorter.
4. Modernization
It can improve the novelty and technology of the building, such as photovoltaic energy-saving curtain wall, double-layer ventilation ventilation curtain wall and intelligent technology supporting design.
5. Easy to update and maintain
Because it is built in the peripheral structure of the building, it is convenient to repair or update it.

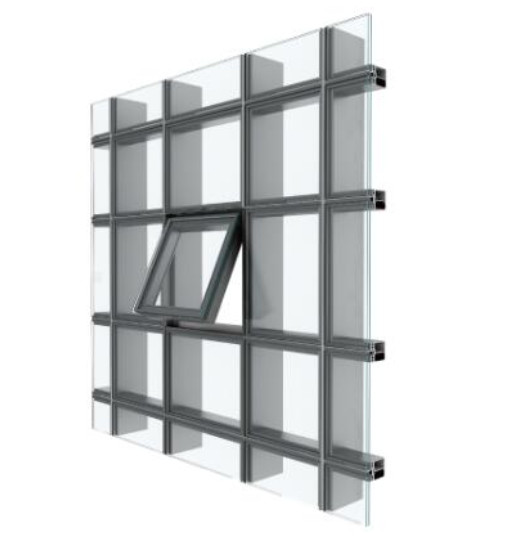

* The aluminum frame is not exposed

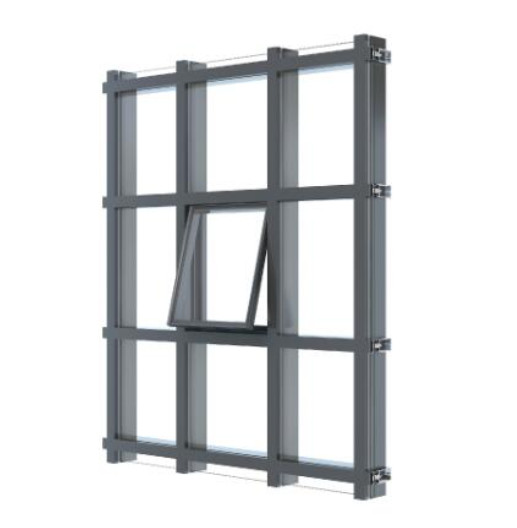

* Aluminum frame is visible
