Thermal Break Bridge Aluminium Casement Window Large Frame
| Place of Origin | GUANGDONG,CHINA |
|---|---|
| Brand Name | KLUK |
| Certification | ISO9001:2021;ISO14001:2021 |
| Model Number | KHD65 |
| Minimum Order Quantity | 500 square meters |
| Price | Negotiation |
| Packaging Details | Pearl cotton, foam cotton, wooden box,etc |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 3000 square maters |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Aluminum Alloy 6063 Frame | Glass | 9+15A+9mm Tempered Glass |
|---|---|---|---|
| Thickness | 1.0-1.5mm Aluminium Casement Windows | Color | Wood,etc |
| Hardware | Handle,lock,fastener,windproof,hinge,etc | Feature | Air Permeability,Security,thermal Insulation,easy To Clean,etc |
| Type | Casement/Swing Windows | ||
| High Light | Thermal Break Bridge Aluminium Casement Window,Large Frame Aluminium Casement Window,1.5mm Thick Aluminium Casement Window |
||
Product Description

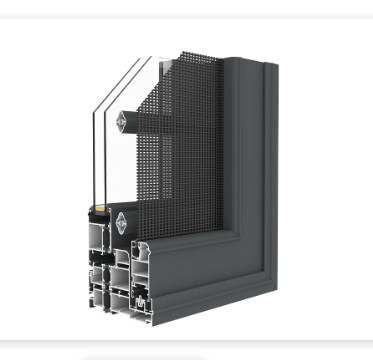

Thermal Break Bridge Aluminum Large Frame 70 Series Doors And Windows
Product Specification:
Easy window net sub aluminum bridge broken aluminum frame 70 series parameters:
Profile brand: Asia Aluminum - South Asia brand
Aluminum wall thickness of surrounding frame: 1.6mm (large frame 70 series and small 70 window sash 1.4)
Aluminum quality: aluminum 6063-T5 high-precision primary aluminum ingot
Factory color: the natural color is white and light champagne (thousands of colors can be sprayed according to customer needs)
Opening method: it is recommended to open inside and reverse inside (horizontal opening and upper suspension)
Nylon strip: PA66GF25 nylon strip
Width of thermal insulation strip: 24.8mm nylon strip is standard configuration, and the thermal insulation strip is PA66 nylon strip plus 25% glass fiber material
Frame material: aluminum bridge broken aluminum large frame 70 series, the width of the large side of the frame is 7 cm, and the small side of the frame is 4.7 cm
Glass configuration: hollow float glass (5+27a+5) (upgradable tempered glass or three-layer glass)
(standard double glass, hollow laminated glass for sound insulation, three-layer glass for heat insulation, and high permeability Low-E glass for heat insulation)
Corner material: all aluminum corner, stainless steel corner piece
Sealing strip: EPDM automobile grade rubber strip
Glass adhesive: Germany Wacker OS environmental neutral silicone weather resistant adhesive (optional)
Hardware: it can be equipped with German siglia hardware, German lattice hardware and German hobo handle
Screen window: optional 304 stainless steel independent large frame with removable diamond mesh inside
| Performance | Parameter | National Standard |
| Wind Load Resistance | 4.5<=p3>=5.0 | level 8 |
| Air Tightness | q1<=0.5 | level 8 |
| Water Tightness | 250<=△p>=350 | level 6 |
| Thermal Insulation | 2.5<=k<=3.0 | level 5 |
| Sound Insulation | 30=<Rw+Ctr<35 | level 5 |
|
