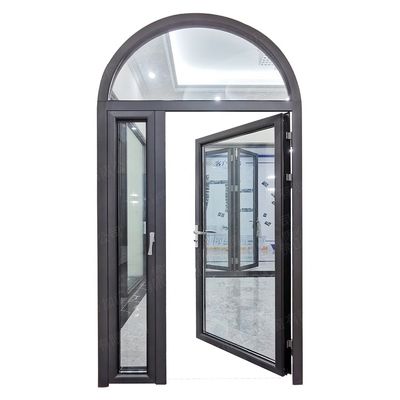

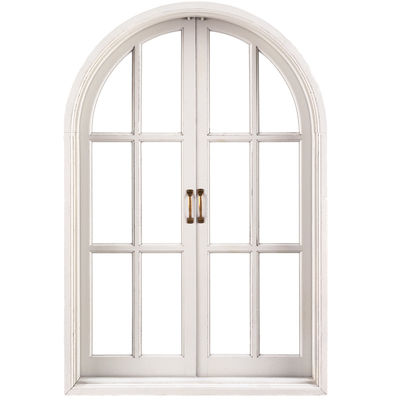

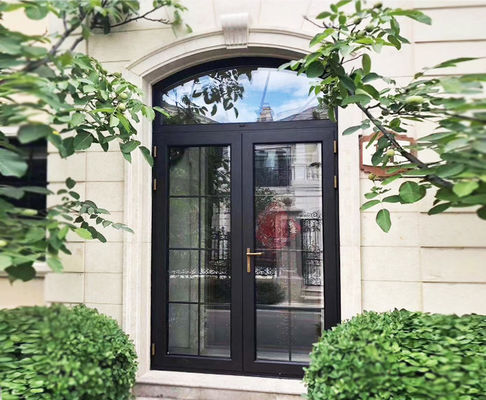

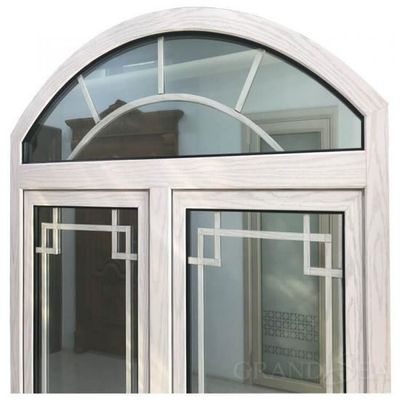

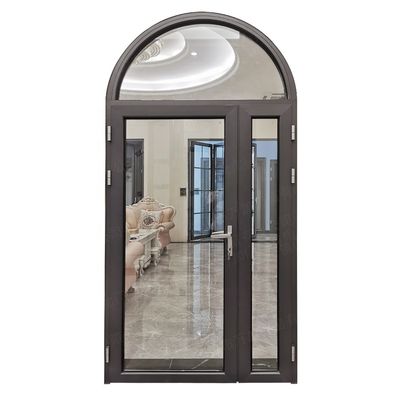

Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge

  • Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge
  • Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge
  • Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge
  • Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge
  • Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge
Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2016;ISO14001:2016
Model Number KHC70A
Minimum Order Quantity 200 square meters
Price Negotiation
Packaging Details Pearl cotton, foam cotton, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C
Supply Ability 2000 square meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Materials Aluminum Alloy Glass Double Hollow Glass
Thickness 2.0mm Color Matt Black;white;ultra Silver
Hardware Reto Gold Handle,IPXX Hinge Position Lobby/hotel Entrance
High Light

hinged Retro Exterior Doors

,

Round Arched Top Aluminum Casement Doors

,

Hinged Aluminum Casement Doors
Leave a Message
Product Description



KHC70A Series Round Arched Top Aluminium Casement Doors retro and fashion with hinge customized design





Doors Assemby Guidance



Factory-assembled Ultimate Casement Round Top (operating or stationary units)

Factory-assembled Ultimate Casement Narrow Frame Round Top (operating or stationary units)



Frame Description



Interior: Non Finger-Jointed Pine or finger-jointed core with non finger-jointed Pine veneer; optional non finger-jointed Douglas Fir or finger-jointed core with non finger-jointed Douglas Fir veneer; optional non finger-jointed White Oak or finger-jointed with non finger-jointed Oak veneer; non finger-jointed Cherry or finger-jointed core with Cherry veneer; non finger-jointed Mahogany or finger-jointed core with non finger-jointed Mahogany veneer; non finger-jointed Vertical Grain Douglas Fir or finger-jointed with non finger-jointed Vertical Grain Douglas Fir veneer.

Kiln-dried to moisture content no greater than twelve (12) percent at the time of fabrication

Water repellant preservative treated in accordance with WDMA I.S.4.

Frame exterior aluminum clad with 0.050 inch (1.3mm) thick extruded aluminum

Frame thickness: 1 3/16” (30mm)

Frame depth for full frame units have an overall 5 21/32” jamb (144mm). 4 9/16” (116mm) jamb depth from the nailing fin plane to the interior face of the frame for new construction

Frame depth for replacement frame units have an overall 3 ¼” jamb (83mm) for replacement application and 2 3/16” (56mm) jamb depth from the nailing fin plane to the interior face of the frame for new construction

Frame bevel: Standard is no bevel, optional available are 8 degree and 14 degree bevel (replacement frame only)



Sash Description



Interior: Non Finger-Jointed Pine or finger-jointed core with non finger-jointed Pine veneer; optional non finger-jointed Douglas Fir or finger-jointed core with non finger-jointed Douglas Fir veneer; optional non finger-jointed White Oak or finger-jointed with non finger-jointed Oak veneer; non finger-jointed Cherry or finger-jointed core with Cherry veneer; non finger-jointed Mahogany or finger-jointed core with non finger-jointed Mahogany veneer; non finger-jointed Vertical Grain Douglas Fir or finger-jointed with non finger-jointed Vertical Grain Douglas Fir veneer

Kiln-dried to moisture content no greater than twelve (12) percent at the time of fabrication

Water repellant preservative treated with accordance with WDMA I.S.4

Sash exterior aluminum clad with 0.050” (1.3mm) thick extruded aluminum

Sash thickness: Sash thickness is 1 5/8” and 1 7/8” (48mm) for full frame units. Replacement frame will have a sash thickness of 1 5/8”

Stiles and Rails: 2 1/16” (52mm)

Sash Option: Optional tall bottom rail: 3 9/16” (90mm)

Interior Sash Sticking

Standard is: Ogee

Optional: Square Sticking and Ovolo Profile


Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge 0

Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge 1




Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 9
Air Tightness q1<=0.5 level 8
Water Tightness 250<=△p>=350 level 5
Thermal Insulation 3.0>k>=2.5 level 5
Sound Insulation 35=<Rw+Ctr<40 level 6



Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge 2



Name/Model: Round Arched Top Aluminium Casement Doors Retro And Fashion With Hinge Customized Design
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

Hardware :


China Top brand: MACO

Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)




Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge 3


Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge 4






Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge 5




Round Arched Top Aluminum Casement Doors , Retro Exterior Doors With Hinge 6
