Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows

Place of Origin China
Brand Name KLUK
Certification ISO14001, ISO45001,ISO9001
Model Number CW 005
Minimum Order Quantity 100pcs
Packaging Details Customized
Delivery Time 25days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Open Style Swing,Sliding,etc,inward/outward Tilt,awning Frame Material Aluminum Alloy,Aluminium-clad Timber Windows
Opening Pattern Horizontal Color Customized Colors,White,Grey,Black,White/Black/Grey/Champagne/Wood Grain
Hardware Chinese Top Brand Size Customized Size,Client Specification,Requirement,Customizable Size,customization
Surface Treatment Powder Coated,Powder Coating,electrophoresis,Anodizing Material Aluminum Alloy+Glass,Aluminum Alloy,Aluminum Frame,Aluminium Alloy Thermal Break/Non-thermal Break,Aluminum+wood
Glass Type Single; Double; Triple,Low-E Glass/Reflected Glass/Tempered Glass/Float Glass/Art Glass,5-10mm Single/5+12A+5 Double Glazed,5+9A+5 Glass Tempered Glass,5+9A+5mm Insulation Tempered Clear Glass,Double Glass,single
Product Name Custom Aluminum Casement Windows,Inward Opening Aluminium Casement Window Indonesia Style,Window Grills Design Pictures Aluminium Casement Sliding Windows Type Casement Windows,aluminium Side Opening Window,Sliding Windows,Hinged Window
Profile Thickness 1.2mm - 2.0mm,1.2 Mm-2.2 Mm,1.4mm,1.2-2.5mm,1.4 Mm-2.0mm Screen Netting Material Stainless Steel
Feature Energy Saving,Folding Screen,Magnetic Screen,Sound Insulation,Noise Insulation Application Residential,Housing Series; Residentials,Buyer's Option
Advantage Anti Mosquito And Safety,Professional,Economic,Heat Insulation.Waterpfoof Glazing Fully Tempered 5/12A/5 Insulation Glass; Low-E Coating,5mm+9a+5mm,Triple Glazed
High Light

Horizontal Aluminum Clad Window


Casement Hurricane Impact Windows


Horizontal Casement Hurricane Impact Windows

Leave a Message
Product Description

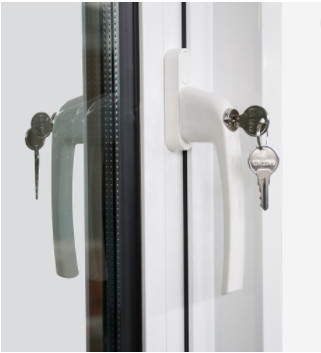

KLUK Double Glazed Hurricane impact Aluminum Frame Commercial Casement Window with Multi Locking Handle


YY Homes Aluminum Commercial Double Glazed Casement Window

are available in a wide range of configurations and colors to suit any design application, offering double the entry width of normal doors.

Quality design and construction adds strength, excellent security and durability for years of effortless use.


Name: Aluminum Commercial Double Glazed Casement Window
Standard/Certificate: comply with NFRC/NAFS-11/CSA/Miami-Dade
Glass Standard: Comply with SGCC,IGCC & EN STANDARD
Structural glazing: Comply with SGCC,IGCC
Brand: KLUK
Aluminium Extrusion profiles 6063-T5 aluminium alloy
Hardware: /
Glass blades: 6+12A+6MM with Low E or Impact and Laminated
Surface Finish For Aluminium:

powder coated meet AS 3715, Electrophoresis,


or wood color


matt black;white;ultra silver;clear anodized;

nature clean aluminium

Flyscreen Stainless steel mesh available
with flynet
Main market Australia, Canada, New Zealand
Guarantee Period 10 Years
Production Experience 20Years

available for housing series; residentials series;

commerical series

Wall Type:

meet double brick; brick vaneer; concrete;

wooden frame; steel structure

Installation: angels; timber reveals; sub-head; sub sills available.
After-Service Engineer's Solution
Video Show,PDF Drawing
Sample lead time 7 days
Delivery Time on mass order:

45 days for standard color;

50 days for customized color

USA/Canada certified Double Glazed Hurricane impact Aluminum Frame Commercial Casement Window with Multi Locking HandleUSA/Canada certified Double Glazed Hurricane impact Aluminum Frame Commercial Casement Window with Multi Locking Handle



Support Materials

Support Materials

USA/Canada certified Double Glazed Hurricane impact Aluminum Frame Commercial Casement Window with Multi Locking Handle

Glass Specification Details:

1. Single:5mm,6mm,8mm,10mm,12mm,15mm Tempered Glass

2. Laminated:10.38PVB,10.76PVB,12.14PVB,12.52PVB

3. Double Pane:


4.Triple Glass:

5mm+1.52PVB+5mm+1.52PVB+5mm; 5mm+12A+5mm+1.52PVB+5mm...for your choose

Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 3

Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 4Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 5Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 6Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 7Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 8Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 9Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 10Horizontal Aluminum Clad Window , Casement Hurricane Impact Windows 11



1. The principle of electrophoresis technology


The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.

The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.

For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.


2. Excellent performance of products


high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.


3. The principle and application of paint extinction


With electrophoresis coating technology development, in the coating industry in China, also become the world’s top coating production, forming a related industry group, and actively promote the technological revolution and development of traditional painting domain. During this period, the bright and bright gloss paints are popular with consumers with their bright colors and bright colors, and in a long time, the coating market. However, as people’s living standard has been improved, on the one hand, consumers have felt that the high gloss coating is more serious than the reflection, which is harmful to people’s eyes. On the other hand, the aesthetic concept of consumers is more and more casual, fashionable and personalized. Coupled with the booming demand of China’s electronics and appliance industries. These factors led to a sharp increase in demand for low-gloss coatings with a soft appearance. At the same time, it is necessary to consider how to produce paint with matte performance.


3.1.1 Determination of gloss and luster


The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sublight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.
