Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony

Place of Origin China
Brand Name KLUK
Certification ISO14001, ISO45001,ISO9001
Model Number SD 005
Minimum Order Quantity 100pcs
Packaging Details Customized
Delivery Time 25day
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Open Style Swing,Folding,Sliding Door Material Aluminum Alloy,Glass,Aluminum Alloy + Titanium Magnesium Aluminum Alloy,Tempered Glass Panel And Aluminum Frame
Surface Finishing Finished Type Entry Doors,Sliding Doors,swing Doors
Position Commercial,toilet,balcony Color Requirement,optional,can Be Customized,White/ Black/ Any Color
Material Aluminun Alloy,Aluminum Alloy+Glass,stainless Steel,cast Aluminum,aluminum+glass Surface Treatment Power Coating,power Coated,Anodize/electrophoretic/wood Grain/spray/Oxidation
Glass Double Tempered Glass,single Glass,5mm-24mm All Types Of Glass,triple Glass Hardware Chinese Top Brand
Size Customized Size,Client Specification,900*2100*45mm Product Name Home Entry Residential Safety Aluminium Alloy Swing Door,Modern,Aluminium Sliding Door,Aluminium Hinged Door
Application Commercial Building,toilet Name Aluminum Out Swing French Doors,Glass Aluminium Swing Doors,Modern House Design Garden Swing French Door Exterior Hinge Door
Profile Thickness 2.0-3.0mm,2.0mm,2.0mm Thickness For Doors,1.2mm,6063-T5 2.0 Mm Glass Type 5+9A+5 Double Tempred Glass,double,low-e,Single
Warranty 6~10 Years Opening Direction Outward Swing,Inward/outward,outside/inside,left/right
High Light

Barrier Free Threshold Aluminum Swing Doors


left hand inswing front door


Aluminum Swing Doors ISO9001

Leave a Message
Product Description
Products Description
Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 0

KLUK Aluminum Swing Glass Front Entry Door Balcony Toilet 5-24mm Thickness

1) One-piece design of aligned frame and glass, tight connection of hardware and profile,with outstanding function.
2)Various opening methods available, with different locks.
3)Barrier-free threshold design, convenient for pass, optional high threshold upon requirement.
4)Latest silicone foam sealing strip, with excellent airtightness and soundproof function.
5)Optional built-in louvered hollow glass.

Product Paramenters
Standard Specification
Max Panel Width
6mm + 12A + 6mm Tempered Glass
Max Panel Width
Weight Bearing
Kinlong / Cmech
Grade 4
Sound proof
35 dB
Water tightness
600 Pa
Grade 5
600 Pa
Grade 6
Wind resistance
4500 Pa
Grade 8

details infomation will help us quote exact price to you

Price is based on customer's specific requirements as below
1) Door drawing to show the door dimensions ,quantity and types(how many panels and direction)
2.Profile color and types(regular or thermal break);
3) Glass types(single/double/triple), thickness, and color(clear, tinted, reflective or Low-E, w or w/o Argon).

Please noted,each types of door ,we use the same quantity of hardware and accessory ,so the samller one panel is , the unite price will be much higher .
Details Images

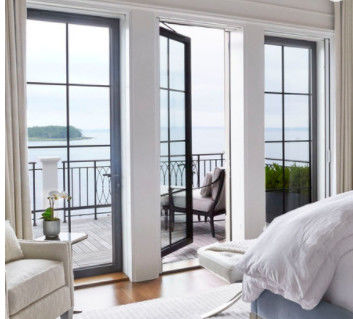

Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 1

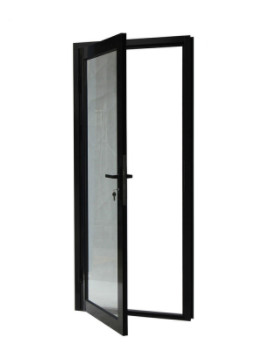

Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 2

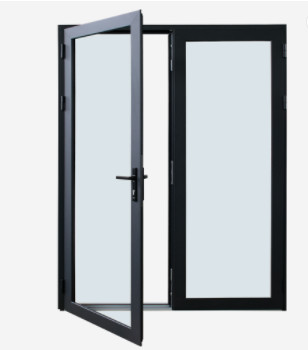

Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 3Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 4Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 5Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 6Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 7Barrier Free Threshold Aluminum Swing Doors Front Entry ISO9001 For Balcony 8



1. The principle of electrophoresis technology


The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.

The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.

For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.


2. Excellent performance of products


high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.


3. The principle and application of paint extinction


With electrophoresis coating technology development, in the coating industry in China, also become the world’s top coating production, forming a related industry group, and actively promote the technological revolution and development of traditional painting domain. During this period, the bright and bright gloss paints are popular with consumers with their bright colors and bright colors, and in a long time, the coating market. However, as people’s living standard has been improved, on the one hand, consumers have felt that the high gloss coating is more serious than the reflection, which is harmful to people’s eyes. On the other hand, the aesthetic concept of consumers is more and more casual, fashionable and personalized. Coupled with the booming demand of China’s electronics and appliance industries. These factors led to a sharp increase in demand for low-gloss coatings with a soft appearance. At the same time, it is necessary to consider how to produce paint with matte performance.


3.1.1 Determination of gloss and luster


The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sublight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.




Please tell us the information below, and we will give the best suggestion to you !


1. Where you intend to use the aluminium windows?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
