• Guangdong KLUK Aluminum Building Technology Co., Ltd
    The best company with best aluminum Windos and Doors on the market. KLUK meet all our requirements!
  • Guangdong KLUK Aluminum Building Technology Co., Ltd
    With reasonable prices and high-quality products, it is difficult to find another company like KLUK.
  • Guangdong KLUK Aluminum Building Technology Co., Ltd
    We purchased casement windows from KLUK for our building project, good quality and fast delivery. Highly recommended!!
Contact Person : Susan Chu

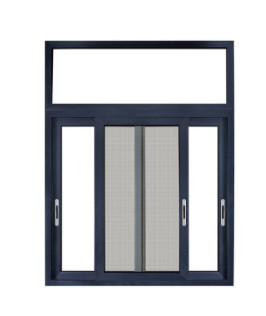

OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved

Place of Origin China
Brand Name KLUK
Certification ISO14001, ISO45001,ISO9001
Model Number Sliding window
Minimum Order Quantity 100pcs
Delivery Time 25-30days
Payment Terms L/C, T/T, MoneyGram, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Open Style Swing,Sliding,awning Frame Material Aluminum Alloy,PVC/Aluminum Alloy(Normal/Thermal Break),Aluminium-clad Timber Windows
Opening Pattern Horizontal Color Customized Colors,White/Black/Grey/Champagne/Wood Grain
Hardware Chinese Top Brand Size Customized Size,Client Specification,Requirement,customization
Material Aluminum Alloy+Glass,Aluminum Alloy,Aluminium Alloy Thermal Break/Non-thermal Break,Aluminum+wood Glass Type Single; Double; Triple,Low-E Glass/Reflected Glass/Tempered Glass/Float Glass/Art Glass,5-10mm Single/5+12A+5 Double Glazed
Glass Tempered Glass,5+9A+5mm Insulation Tempered Clear Glass,Double Glass,single Product Name Custom Aluminum Casement Windows,Inward Opening Aluminium Casement Window Indonesia Style,Australia AS2047 Cheap General Brown Aluminium Casement Windows,Window Grills Design Pictures Aluminium Casement Sliding Windows
Type Casement Windows,aluminium Side Opening Window,Sliding Windows,Hinged Window Profile Thickness 1.2mm - 2.0mm,1.2 Mm-2.2 Mm,1.2-2.5mm,1.4 Mm-2.0mm
Screen Netting Material Stainless Steel Feature Energy Saving,Folding Screen,Sound Insulation
Application Residential Advantage Anti Mosquito And Safety
Glazing Fully Tempered 5/12A/5 Insulation Glass; Low-E Coating,5mm+9a+5mm,Triple Glazed Surface Finish Wooden Grain Etc,anodizing,Powder Coating,powder Coated
High Light

ODM Sliding Casement Windows


ISO14001 Sliding Casement Windows


ODM Aluminum Casement Style Windows

Leave a Message
Product Description

Aluminium Sliding Window Aluminum Alloy Windows

Packaging & Delivery
Packaging Details
Good export package: 5mm foam layer +5mm pearl layer +hard carton(outside)
price of aluminium sliding window
Product Name standard size alumium door and window with lock
Brand Name Yonglong Aluminum company
Opening Style slide,casement,accordion top-hung,tilt-turn,fix combination,skylight
Glass Type Single; Double; Triple
Glass Colour Clear; Green; Blue; Brown; Frosted,coating,laminate,bulletproof,etc
profile profile thickness 1.4mm,1.6mm,2.00mm, standard size design
Hardware window lock or handle ,corner connector and rubber gasket.
Mosquito Net Nylon or Stainless Steel,black steel screen and magnetic ,electronic control blinds
Certificate ISO9001-2000,china famous enterprise,australia and french style also
Profile Colour White; dark gray; Champagne; RAL&&spray&Wood Colour

Wholesale doors and windows design price of aluminium sliding window aluminum alloy windows

80 series sliding window is basic sliding type but wth strong heavy duty profile , it has only 2 tracks for sliding sashes,if u want security steel mosquito net , u can also choose Lingyin heavy duty 126 series 3 track sliding window or door


OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 1OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 2OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 3OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 4OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 5OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 6OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 7OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 8OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 9OEM ODM Aluminum Sliding Casement Style Windows ISO14001 Approved 10





1. The principle of electrophoresis technology


The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.

The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.

For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.


2. Excellent performance of products


high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.


3. The principle and application of paint extinction


With electrophoresis coating technology development, in the coating industry in China, also become the world’s top coating production, forming a related industry group, and actively promote the technological revolution and development of traditional painting domain. During this period, the bright and bright gloss paints are popular with consumers with their bright colors and bright colors, and in a long time, the coating market. However, as people’s living standard has been improved, on the one hand, consumers have felt that the high gloss coating is more serious than the reflection, which is harmful to people’s eyes. On the other hand, the aesthetic concept of consumers is more and more casual, fashionable and personalized. Coupled with the booming demand of China’s electronics and appliance industries. These factors led to a sharp increase in demand for low-gloss coatings with a soft appearance. At the same time, it is necessary to consider how to produce paint with matte performance.


3.1.1 Determination of gloss and luster


The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sublight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.




Please tell us the information below, and we will give the best suggestion to you !


1. Where you intend to use the aluminium windows?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
