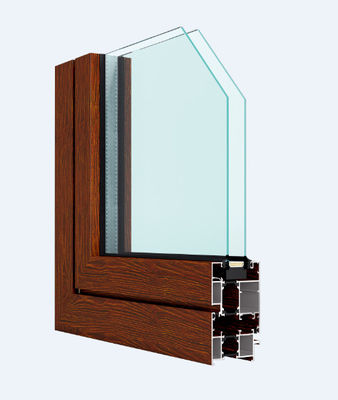

Horizontal Aluminium Casement Windows Wood Grain Finish With Folding Screen

KPD70 Series Casement window

Advantage:

1. Unique and extreme line (gilt-edged) structural design, unified open and fixed appearance, minimalist, high-end, with high cost performance;
2. Professional corner code connected with reasonable glue injection process, no lack of glue and no excess, improve the strength, water tightness and air tightness of the corner; Provide the humanized choice of collision Angle group Angle and field Angle group Angle code;
3. Professional transom injection rubber connector, enhance the transom resistance to wind pressure, air tightness and water tightness;
4. Unique and reasonable drainage channel makes the experiencer rest at ease;
5. Can be equipped with doors and Windows to solve the needs of large projects;
6. Standard 5mm+21A+5mm insulating glass.
7. Form a system of sharing sub-parts with KPD60.

Product performance:

Wind pressure level 9 P3 ≥5.0

Air tightness level 8 Q1 ≤0.5

Water tightness grade 6 △ P ≥700

Sound insulation level 4 35≤ RW + CTR < 40 Heat insulation level 6 2.5 > K ≥2.0

Colors:

Surface:
1. The principle of electrophoresis technology
The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.
The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.
For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.
2. Excellent performance of products
high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the aver

Please tell us the information below, and we will give the best suggestion to you !
1. Where you intend to use the aluminium doors?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
