KLUK Aluminum Sliding Windows, Triple Track Patio Windows

Place of Origin China
Brand Name KLUK
Certification ISO14001, ISO45001, ISO9001
Model Number KTD120 series
Minimum Order Quantity 100pcs
Packaging Details Customized
Delivery Time 25
Payment Terms T/T, Western Union, MoneyGram, D/A, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Frame Material Aluminum Alloy Opening Pattern Horizontal,Vertical,Sliding
Open Style Sliding,Swing Hardware Chinese Top Brand,China Top Brand And German ROTOI
Size Customized Size,Can Be Customized,According To Your Project,standard Or Customized Surface Treatment Powder Coated,Power Coating,Anodizing,Anodize,Wood Grain Finish / Customized
Color White,Customized,gold,grey,customization Glass Double,Single,Double Tempered Glass,AS 2208 Certificate Sirglge Glass Or Double Glass 5mm + 9A + 5mm
Type Sliding Windows,Double Hung Windows,OEM Aluminum Extrusions Profiles Material Aluminum Alloy+Glass,Aluminum Alloy 6063-T5,Alloy 6063/6061/6005/6060 T5/T6,Aluminum Alloy+Tempered Glass,Aluminum Alloy+Glass+Accessories
Glass Type Double Tempered Impact Glazing,Single Glass Or Customized,Single; Double; Triple,Low-E Screen Netting Material Fiberglass,Stainless Steel,customization
Application Residential House,Hotel,office,Housing Product Name Aluminium Profile Sliding Windows,aluminum Sliding Windows Aluminum Up And Down Windows,Cheap House Aluminum Sliding Windows For Sale
Feature Folding Screen,Soundproof/Waterproof,Energy Saving,with Shutter Design Name Double Hung Vertical Sliding Windows Aluminium,Sliding Glass Aluminum Profile Window,Aluminium Windows And Doors,aluminum Bathroom Sliding Windows,Made In China Aluminum Windows
Profile Thickness 1.4mm,1.4mm-2.0mm,2.0mm,1.2mm - 2.0mm Function Fireproofing Etc.,Heat Insulation; Soundproof ;Fireproof; Waterproof,Window Security,Heat & Sound Insulation
Style European Style Aluminum Window,Modern,Simple Aluminum Window
High Light

Triple Track aluminum sliding patio doors


Fireproofing Aluminum Sliding Doors


KLUK Aluminum Sliding Doors

Leave a Message
Product Description

KTD120 Three rail sliding door



•Unique and extreme line (can be gilt edged) structural design, open and fixed, indoor and outdoor appearance unified, minimalist, high-end, with high-cost performance.
• Professional corner code connected with reasonable glue injection process, no lack of glue and no excess, improve the strength, water tightness and air tightness of the corner; Provide the humanized choice of collision Angle group Angle and field Angle group Angle code.
• Professional transom injection rubber connector, enhance the transom resistance to wind pressure, air tightness and water tightness.
• Unique and reasonable drainage channel makes the experiencer rest at ease.
• Professional waterproof and drainage design on the outdoor side of the bilateral withholding line to solve the common problems in the industry.
• Optional installation of protective frame;
• Standard 5mm+12A+5mm insulating glass.
• Form a system of sharing sub-parts with KPD115 and KPD135.

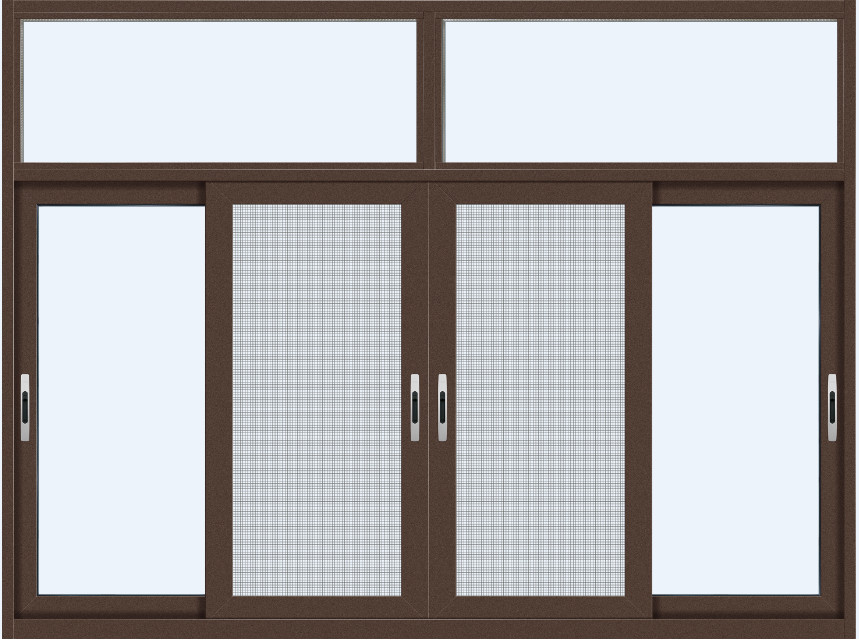

KLUK Aluminum Sliding Windows, Triple Track Patio Windows 0

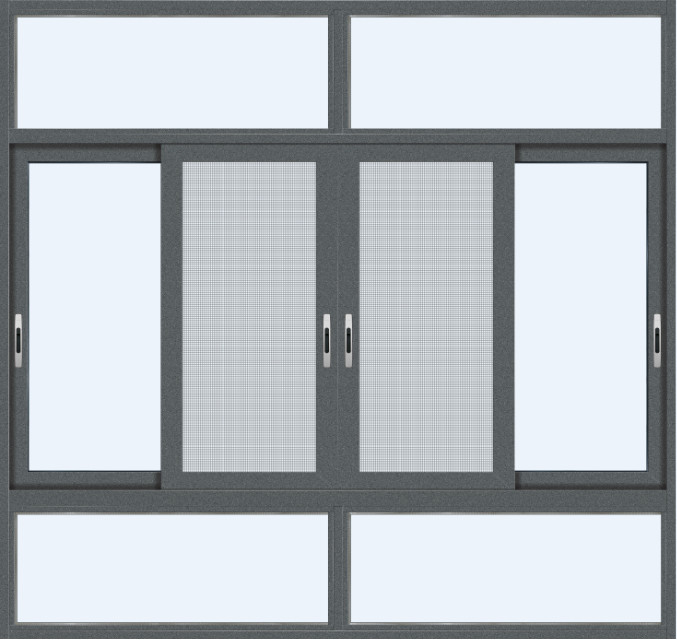

KLUK Aluminum Sliding Windows, Triple Track Patio Windows 1

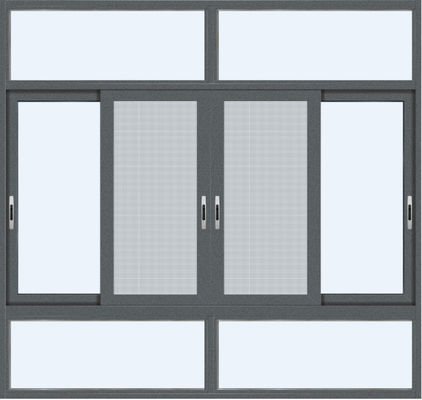

KLUK Aluminum Sliding Windows, Triple Track Patio Windows 2
1. The principle of electrophoresis technology
The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.
The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.
For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.
2. Excellent performance of products
high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the aver

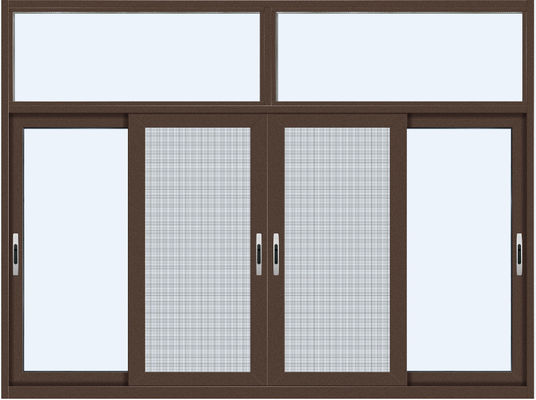

 KLUK Aluminum Sliding Windows, Triple Track Patio Windows 3

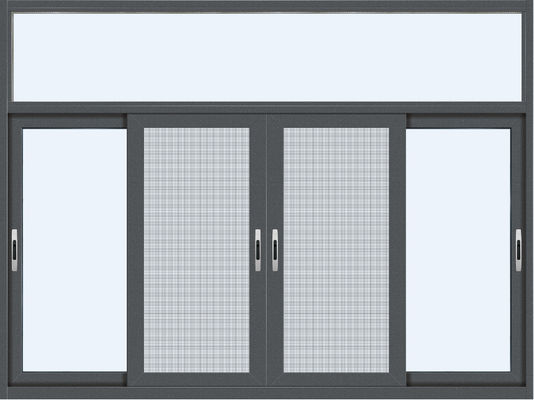

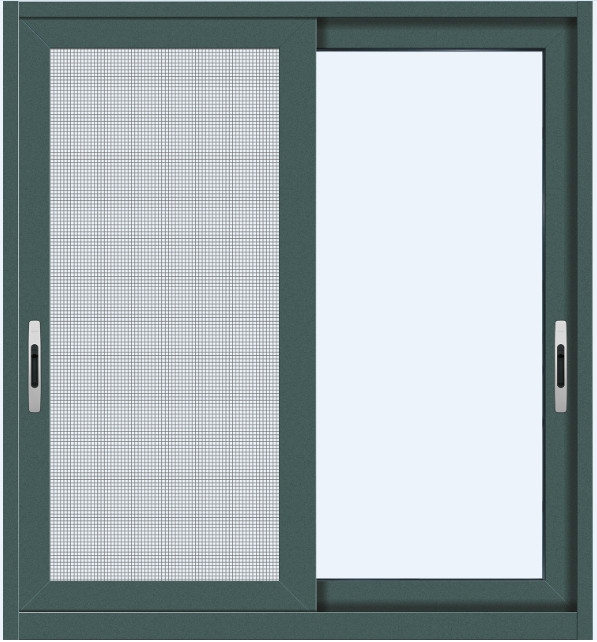

KLUK Aluminum Sliding Windows, Triple Track Patio Windows 4KLUK Aluminum Sliding Windows, Triple Track Patio Windows 5


Please tell us the information below, and we will give the best suggestion to you !
1. Where you intend to use the aluminium doors?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
