Powder Coated Aluminium Flush Casement Windows With Magenetic Flyscreen

Place of Origin GUANGDONG,CHINA
Brand Name KLUK
Certification ISO9001:2016;ISO14001:2016
Model Number KPD125
Minimum Order Quantity 150 square meter
Price Negotiation
Packaging Details Pearl cotton, foam cotton, wooden box
Delivery Time 20-30 days
Payment Terms T/T, L/C
Supply Ability 30000 square meters

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials Aluminum Alloy 6063 Frame Glass Relective Hollow Glazing
Thickness 1.5mm Color Grey
Hardware Handle,lock,pulley Flyscreen Stainless Steel Security Mesh; Aluminium Security Mesh
High Light

magnetic flyscreen window

,

aluminium flush casement windows

,

Powder Coated aluminium flush casement windows

Leave a Message
Product Description



KPD125 Series Aluminum Flyscreen Casement Windows Unified Appearance Of Opening And Fixing





Aluminum Casement Windows:



Aluminium casement windows are windows that are attached to aluminium frames via hinges.

Aluminium casement windows come in a variety of designs, and the right choice will be mainly down to aesthetic preference, although issues such as cost, ventilation, thermal efficiency and security should also be considered.


A pair of casement windows are side hung on friction stay hinges. This is a popular option that is often found in traditional homes.

Casement windows are good for ventilation and can be placed higher on the wall than many other types of windows. Since they open outwards, they can be kept open even when it’s raining outside, and the interior should be safe from moisture.

If a casement window opens from the bottom. These open inwards and are another popular choice for ventilation. They are often used in basements.

Another option, if you can’t decide between side-hinged casement windows and those that open from the bottom (Tilt & turn only tilt from bottom edge), is to use a tilt-and-turn casement window. These have a special mechanism within the frame that makes it possible for the window to be opened in different ways.



Features:



Open and fixed, unified indoor and outdoor appearance, minimalist, high-end, cost-effective;
Professional corner code connection, reasonable glue injection process, improve the strength, water tightness and air tightness of the corner
Optional installation of protective frame
The professional waterproof and drainage design on the outside of the room of the double side pressing line solves the common problems in the industry.



Flyscreen:



There are many kinds of screen windows. There are folding screen windows (Fengqin style). The yarn can be folded. It's convenient to use, and it's easy to hide when not in use. But because it's pulled by several threads, the thread is easy to break after a long time, and the lower part is also easy to jam after a long time, and the light transmittance is not good. It's inconvenient to clean
The second is the rolling screen window, which is driven by a strong spring in the box. The flat yarn (nylon, glass fiber) is used. This is better than the folding one mentioned above. The yarn can be flame retardant. The advantages are good light transmission, hidden type. If there is a windbreak rod installed, it is not easy to enter mosquitoes. But as with the folding one, if the door is large, the small accessories are easy to break after a long time, Because the flat yarn is used, it is often damaged without paying attention. The third one is magnetic suction, which is divided into upper and lower sides. The yarn is glued between PVC and magnetic strip. It can be made into various shapes according to the size of the window. The good thing is that it does not damage the window, because it does not need drilling and installation.

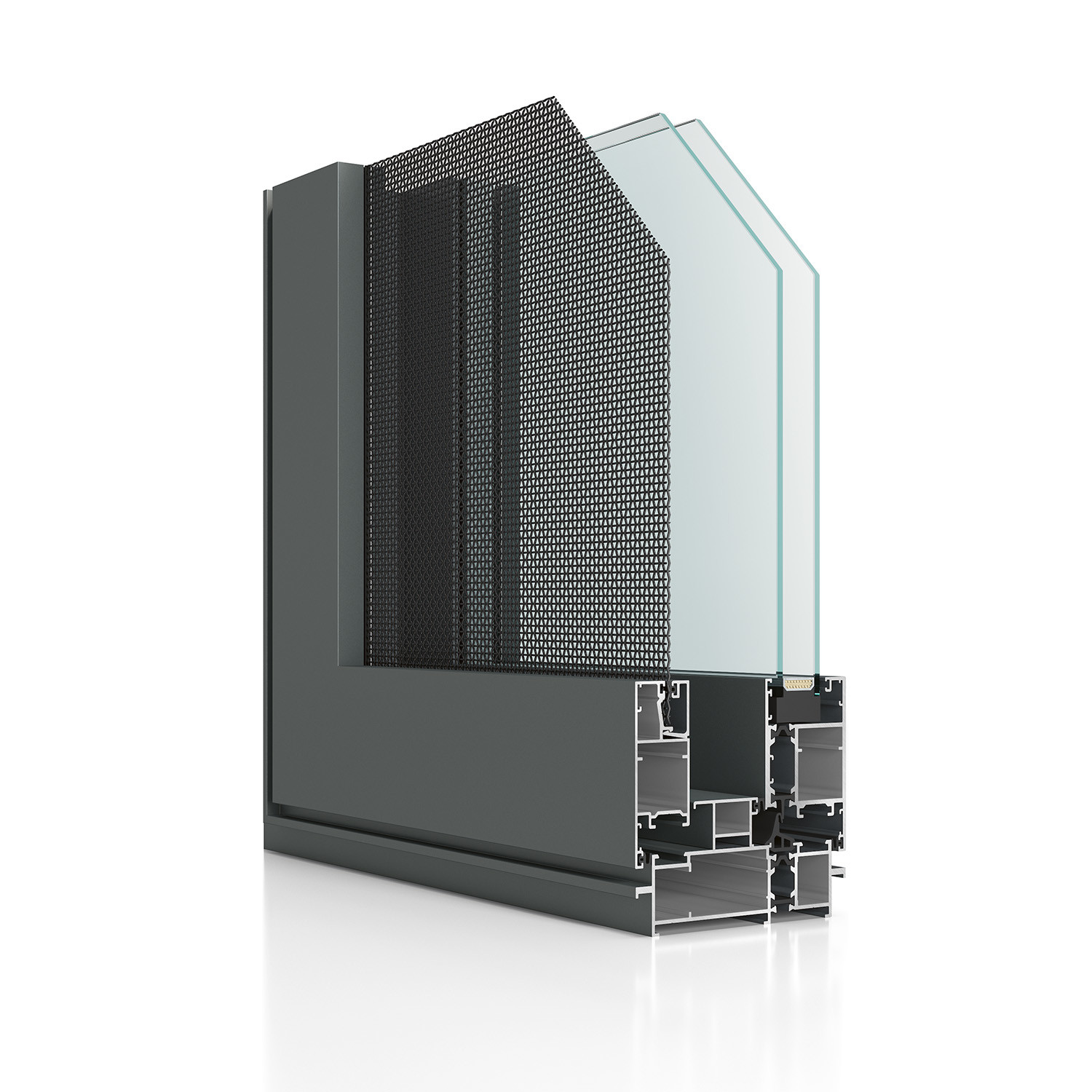

Powder Coated Aluminium Flush Casement Windows With Magenetic Flyscreen 0

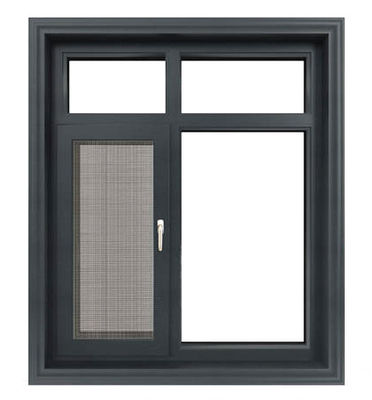

Powder Coated Aluminium Flush Casement Windows With Magenetic Flyscreen 1





































































Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 9
Air Tightness 2.5<=q1<=2.0 level 8
Water Tightness 350<=△p>=700 level 6
Thermal Insulation 3.0>k>=2.5 level 5
Sound Insulation 35=<Rw+Ctr<40 level 3

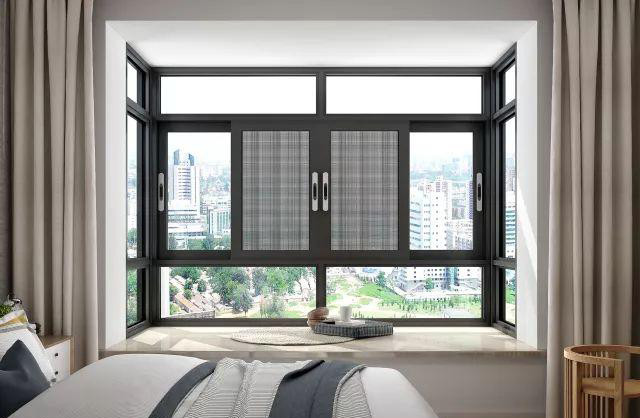

Powder Coated Aluminium Flush Casement Windows With Magenetic Flyscreen 2



Name/Model: Aluminum Flyscreen Casement Windows Unified Appearance Of Opening And Fixing
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need,Aluminum Folding Doors
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color
Hardware : China Top brand: MACO
Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years,
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)





Powder Coated Aluminium Flush Casement Windows With Magenetic Flyscreen 3

Powder Coated Aluminium Flush Casement Windows With Magenetic Flyscreen 4

Powder Coated Aluminium Flush Casement Windows With Magenetic Flyscreen 5



Powder Coated Aluminium Flush Casement Windows With Magenetic Flyscreen 6
